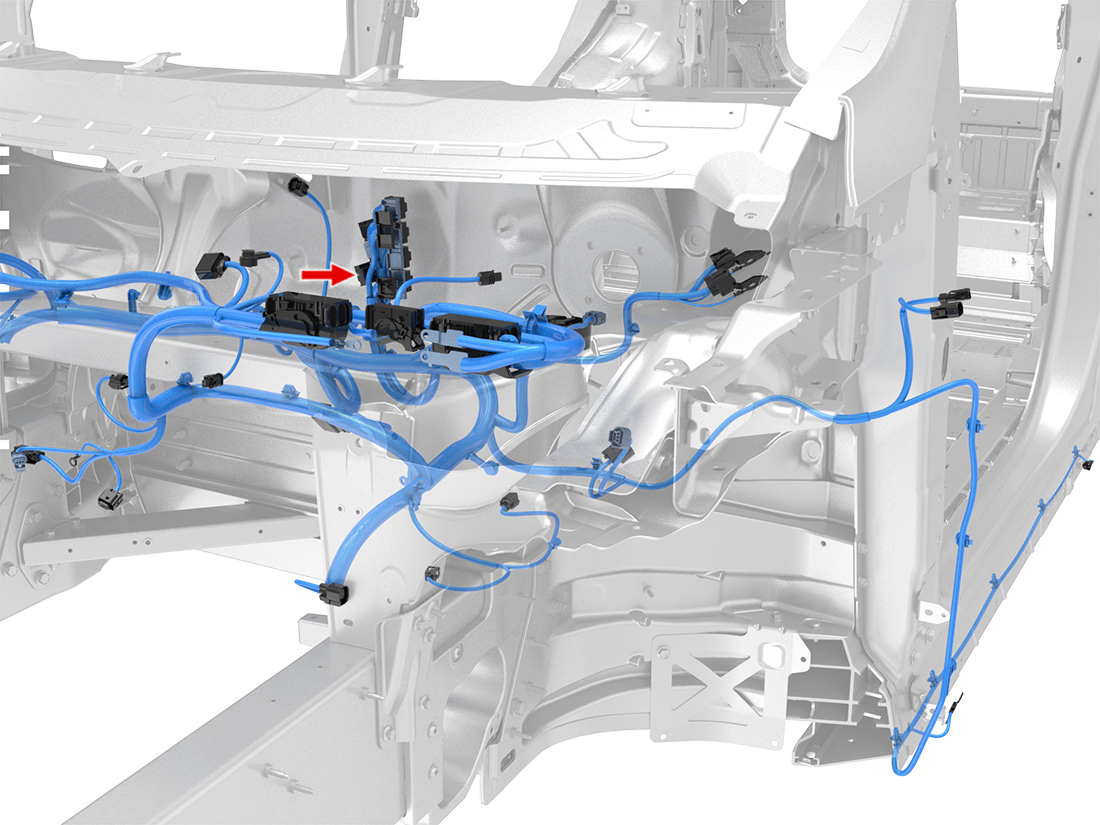

X751 - x-lhd-sop8

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.50	X166	2
2	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.50	X151	33
3	SUMITOMO	8100-3624	0.64x0.64F	YE/WH	0.35	X911F	11
4	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.50	X150	18
5	SUMITOMO	8100-3624	0.64x0.64F	YE/WH	0.35	X914M	7
6	SUMITOMO	8100-3625	0.64x0.64F	YE/WH	0.35	X065	21
7	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X501	18
8	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.50	X530	2
9	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X911F	7
10
11
12	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50	X166	3
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50	X151	20
14	SUMITOMO	8100-3624	0.64x0.64F	YE	0.35	X911F	20
15	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50	X150	10
16	SUMITOMO	8100-3624	0.64x0.64F	YE	0.35	X914M	17
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X065	22
18	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X501	19
19	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X530	3
20	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13	X911F	17
