X857A - x-lhd-sop8

Tesla Part Number
1048705-01-A
Connector
ROSENBERGER 59Z115-000-B
Color
WH

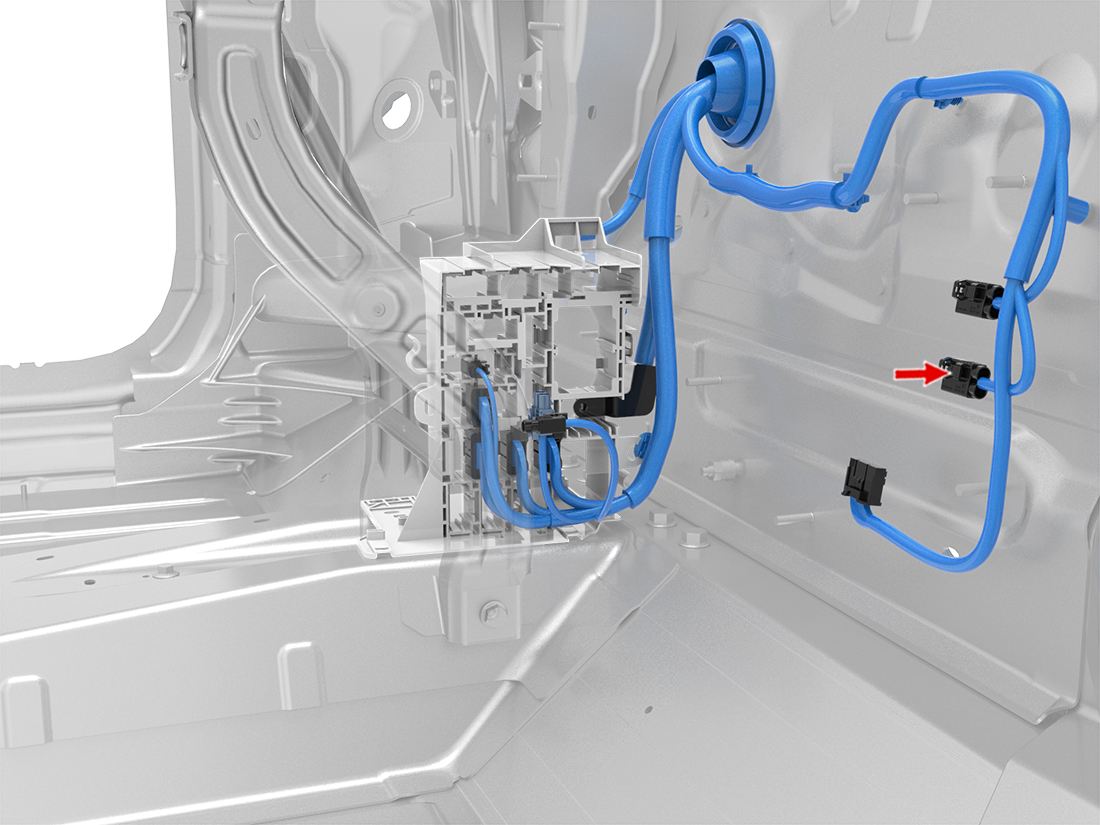

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59K16B-1M4T4COAXFBKD302X8521
2ROSENBERGER59K16B-1M4T4COAXFBKD302X8531
