X860 - x-lhd-sop8

Tesla Part Number
1046402-00-A
Connector
ROSENBERGER D4Z001-000-A
Color
BK

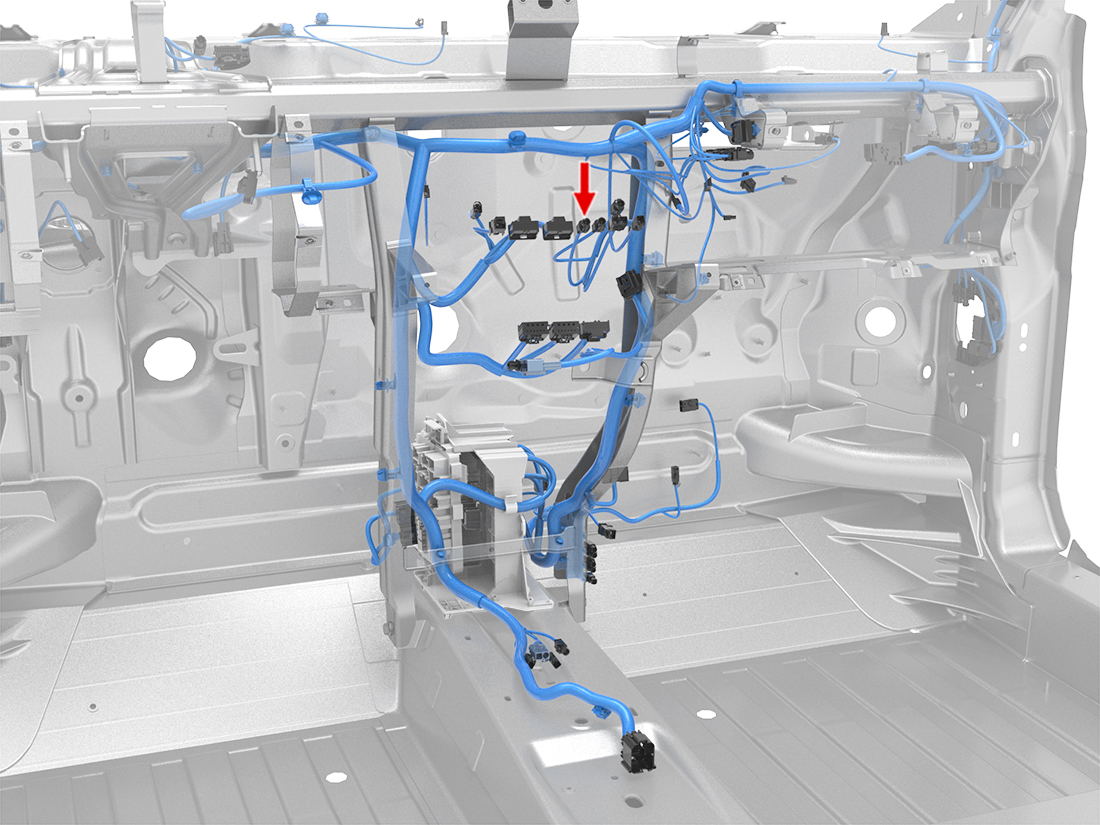

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
HROSENBERGERD4K10A-1D5A5HSDBKD535X861H
