X905M - x-lhd-sop8

Tesla Part Number

1004937-00-B

Connector

MOLEX 33482-6202

Color

GY

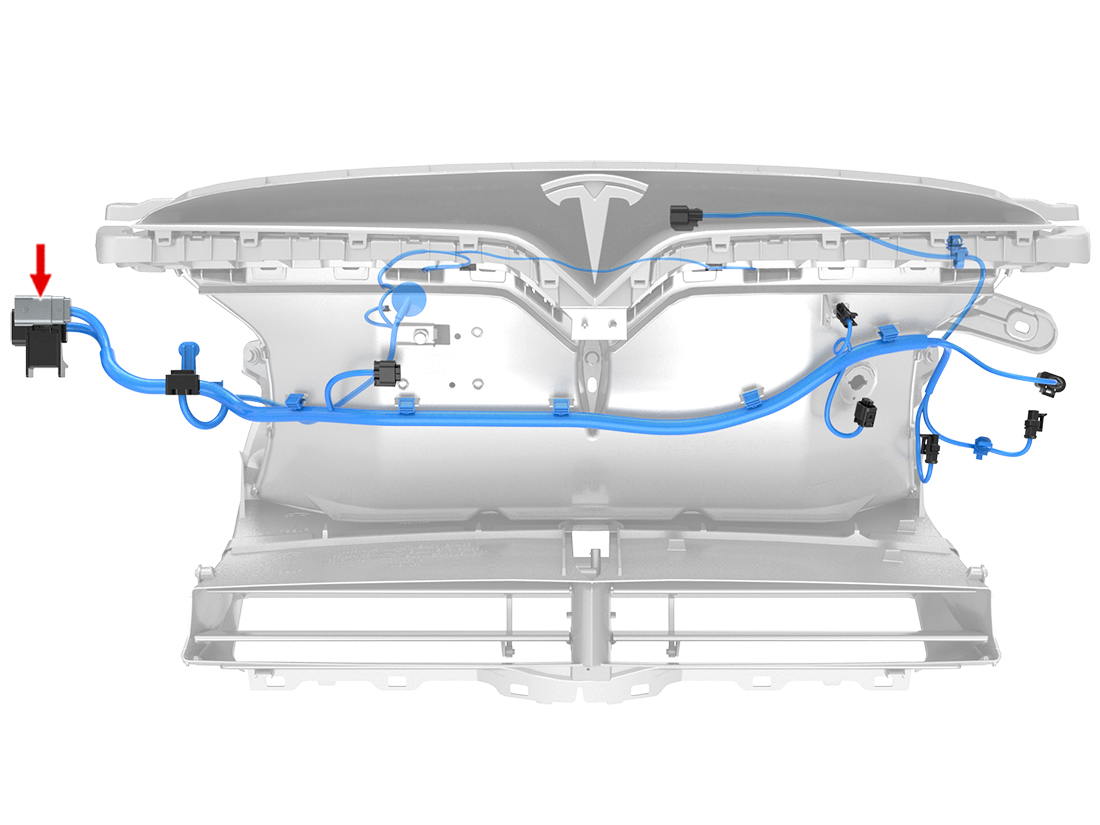

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BU	0.50	TESLA	MAT-120-240	X527	2
2	MOLEX	33000-0004	1.5x0.8M	BN	0.50	TESLA	MAT-120-240	X527	1
3	MOLEX	33000-0004	1.5x0.8M	GY/WH	0.50	TESLA	MAT-120-240	X127	2
4	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X331	2
5	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X331	1
6	MOLEX	33000-0004	1.5x0.8M	GN/WH	0.50	TESLA	MAT-120-240	X294	1
7	MOLEX	33000-0004	1.5x0.8M	RD	0.50	TESLA	MAT-120-240	X487	1
8	MOLEX	33000-0004	1.5x0.8M	GN	0.50	TESLA	MAT-120-240	X332	1
9	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X127	3
10	MOLEX	33000-0004	1.5x0.8M	VT	0.50	TESLA	MAT-120-240	X295	1
11	MOLEX	33000-0004	1.5x0.8M	WH	0.50	TESLA	MAT-120-240	X330	2
12	MOLEX	33000-0004	1.5x0.8M	GY	0.50	TESLA	MAT-120-240	X330	1
