X913F - x-lhd-sop8

Tesla Part Number

1042614-03-A

Connector

SUMITOMO 6098-5609

Color

GY

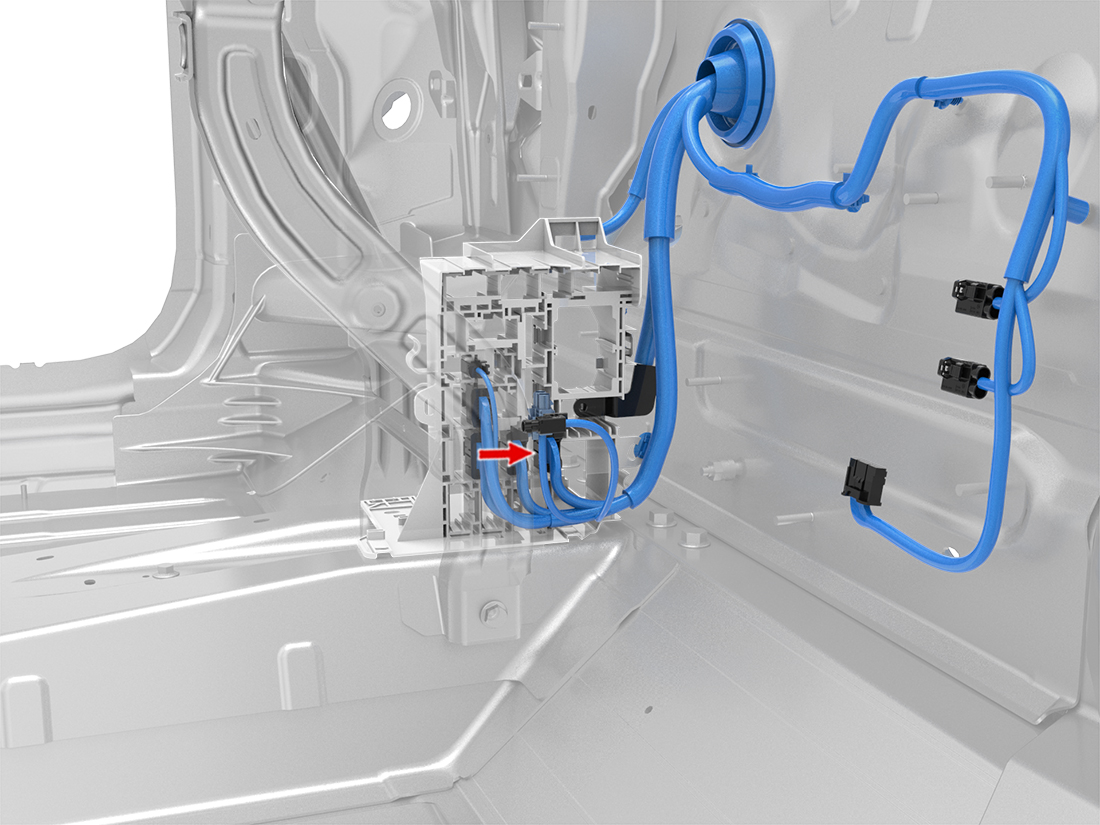

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00			X002	11
2
3	SUMITOMO	8100-3624	0.64x0.64F	RD/GN	0.35			X065	2
4	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X065	30
5	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35			X065	29
6	SUMITOMO	8100-3624	0.64x0.64F	RD/VT	0.35			X080	3
7	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35			X065	10
8	SUMITOMO	8100-3624	0.64x0.64F	BK/VT	0.35			X065	20
9	SUMITOMO	8240-0213	1.5x0.64F	RD	1.00			X001	5
10
11	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X906F	4
12	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50			X101	9
13
14
15	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X100	11
16	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.50			X300	3
17	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X900M	4
18	SUMITOMO	8240-0213	1.5x0.64F	RD/WH	1.00			X001	3
