X922F - x-lhd-sop8

Tesla Part Number

1042614-03-A

Connector

SUMITOMO 6098-5609

Color

GY

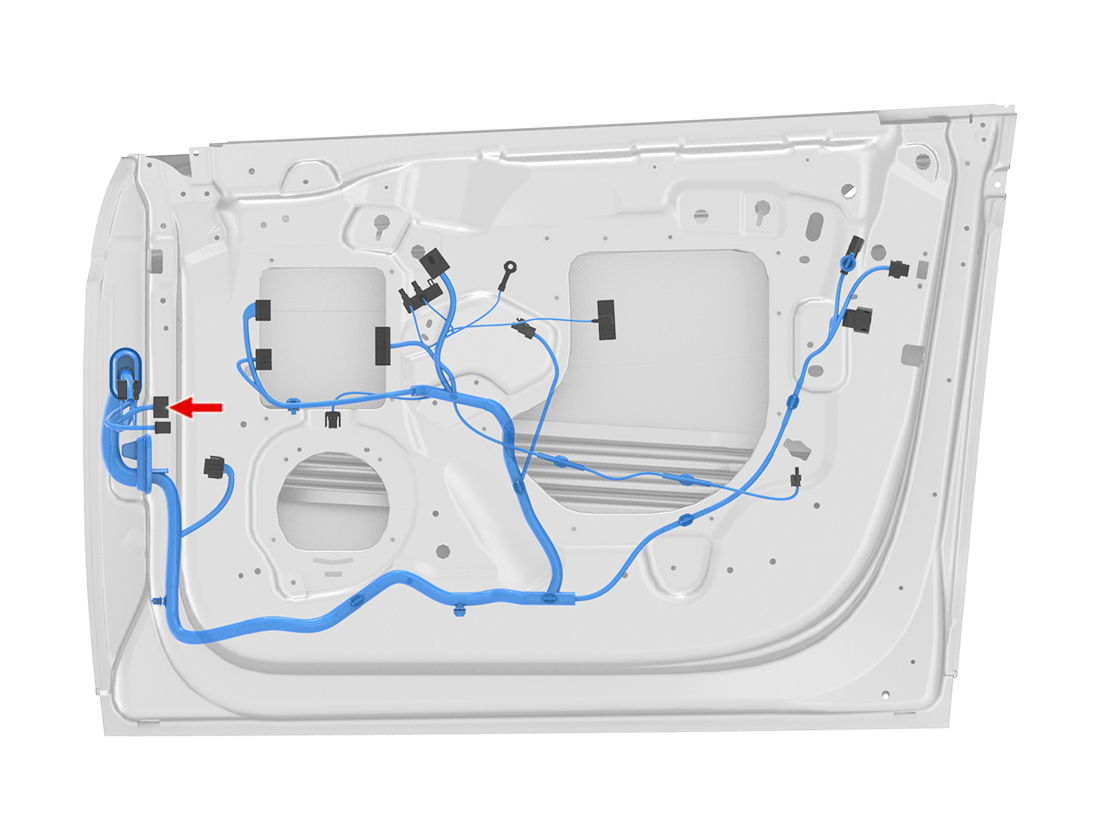

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X403	3
2
3
4
5	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X205	1
6	SUMITOMO	8100-3624	0.64x0.64F	BN/WH	0.35			X391	31
7
8	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35			X391	39
9	SUMITOMO	8240-0215	1.5x0.64F	BK	0.35			X391	14
10	SUMITOMO	8240-0213	1.5x0.64F	GN/WH	1.00			X578	1
11	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			X403	4
12
13	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35			X391	13
14	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X205	2
15	SUMITOMO	8100-3624	0.64x0.64F	BN	0.35			X391	30
16	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35			X391	38
17	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			GND_A_RH_2	1
18	SUMITOMO	8240-0213	1.5x0.64F	GN	1.00			X578	2
