X925F - x-lhd-sop8

Tesla Part Number

1042618-03-A

Connector

SUMITOMO 6098-5664

Color

GY

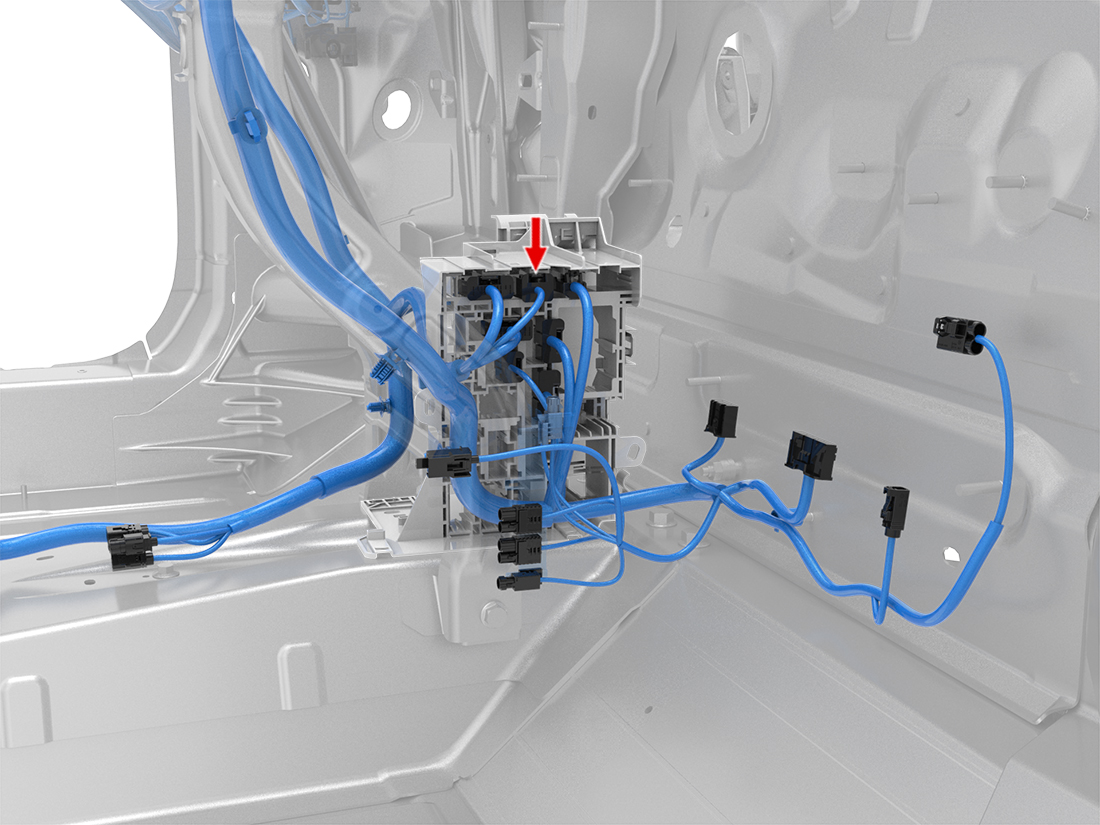

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X560	5
2	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50			X560	17
3	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X560	6
4	SUMITOMO	8240-0213	1.5x0.64F	VT	0.75			X560	18
5	SUMITOMO	8240-0213	1.5x0.64F	GN	0.75			X560	19
6	SUMITOMO	8240-0213	1.5x0.64F	BK	0.75			X560	7
7	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X174	9
8	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X920M	8
9	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35			X728	22
10	SUMITOMO	8100-3624	0.64x0.64F	RD/BU	0.35			X728	8
11
12	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X174	5
13	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X174	10
14	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X920M	16
15	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X171	11
16	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35			X728	16
17
18	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50			X174	6
