X926F - x-lhd-sop8

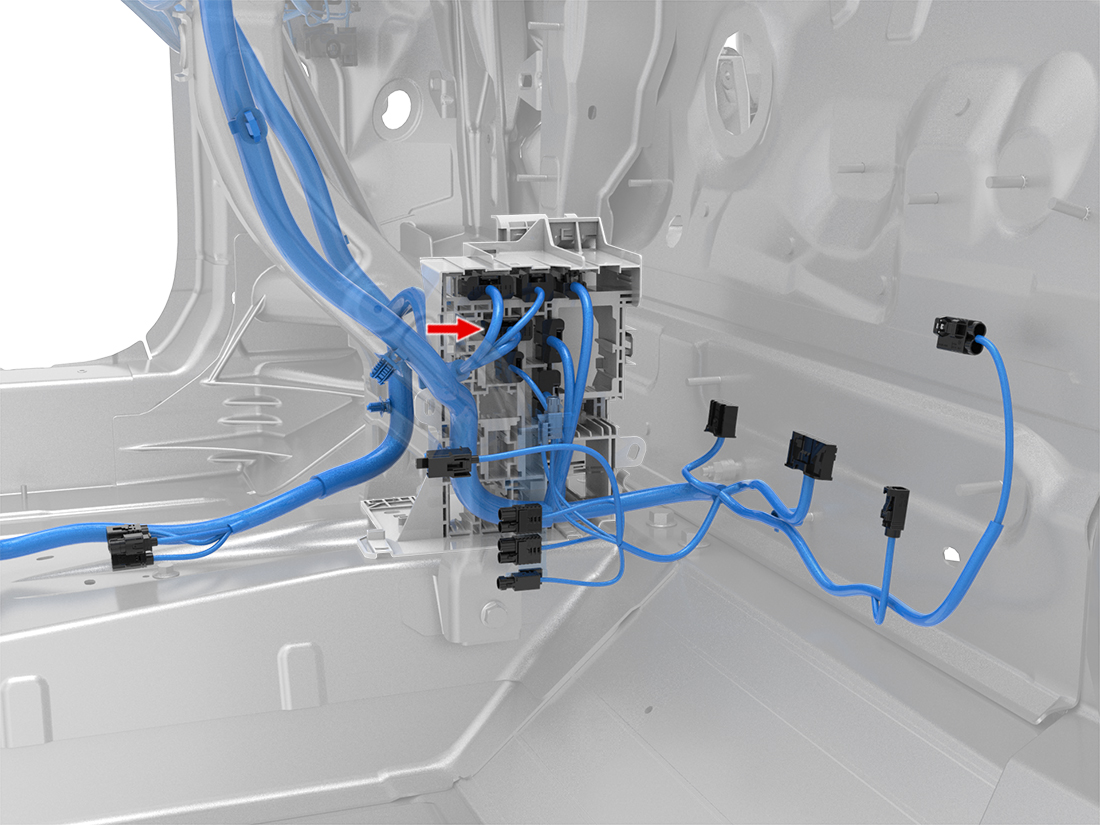

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | GY | 1.50 | X920M | 1 | ||
| 2 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD/WH | 0.35 | X200 | 19 | ||
| 3 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT/WH | 0.35 | X126 | 1 | ||
| 4 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY | 0.35 | X026 | 5 | ||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X920M | 5 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X922M | 5 | ||
| 7 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | GND_IP_L | 1 | ||
| 8 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN | 0.35 | X200 | 25 | ||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 1.50 | X164 | 1 | ||
| 10 | SUMITOMO | 8240-0213 | 1.5x0.64F | WH | 1.00 | X904M | 1 | ||
| 11 | |||||||||
| 12 | |||||||||
| 13 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X126 | 2 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X920M | 14 | ||
| 15 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X922M | 14 | ||
| 16 | SUMITOMO | 8100-3624 | 0.64x0.64F | GN/WH | 0.35 | X200 | 14 | ||
| 17 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD/BU | 0.35 | X026 | 3 | ||
| 18 | SUMITOMO | 8240-0213 | 1.5x0.64F | GN | 1.00 | X903M | 1 | ||
