X927F - x-lhd-sop8

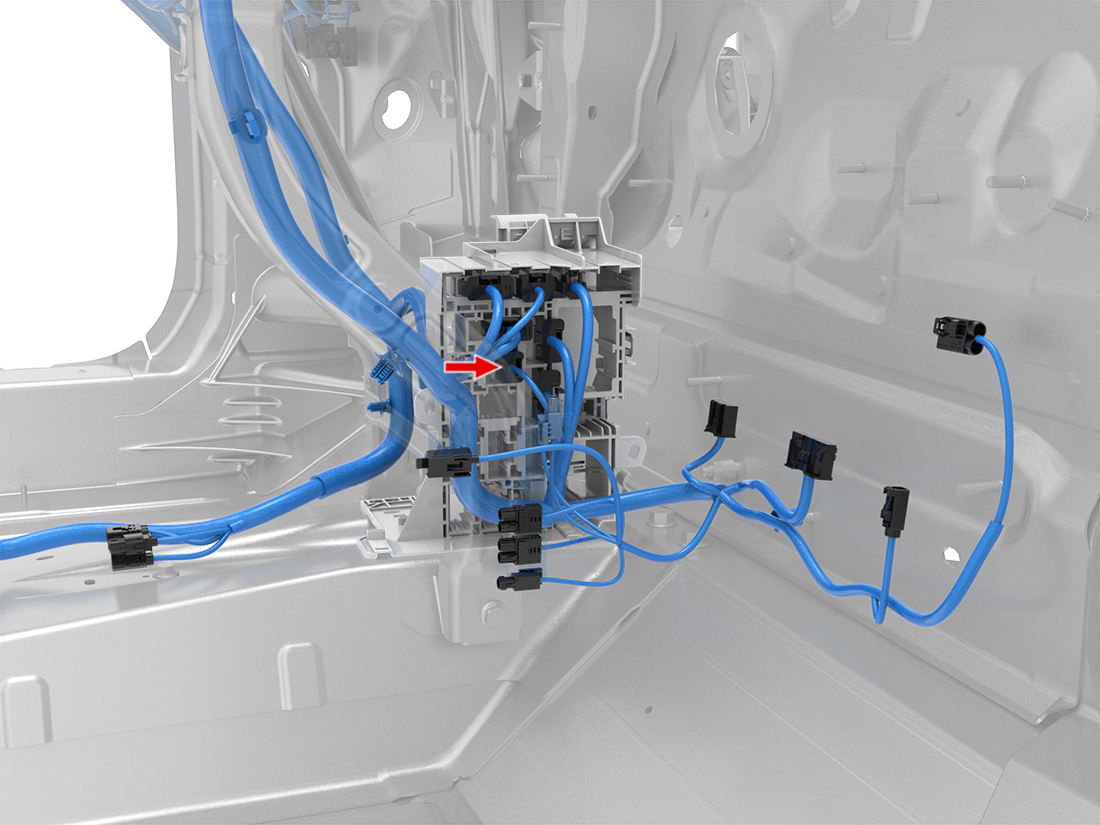

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | SUMITOMO | 8240-0182 | 0.64x0.64F | WH | 0.13 | X922M | 8 | ||
| 3 | SUMITOMO | 8100-3624 | 0.64x0.64F | BK | 0.35 | GND_IP_R | 1 | ||
| 4 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT/WH | 0.35 | X734 | 5 | ||
| 5 | |||||||||
| 6 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY/WH | 0.35 | X179 | 7 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | SUMITOMO | 8240-0182 | 0.64x0.64F | GY | 0.13 | X922M | 16 | ||
| 10 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X734 | 16 | ||
| 11 | SUMITOMO | 8100-3624 | 0.64x0.64F | GY | 0.35 | X179 | 8 | ||
| 12 | |||||||||
