X927M - x-lhd-sop8

Tesla Part Number

1042611-00-A

Connector

SUMITOMO 6098-6090

Color

WH

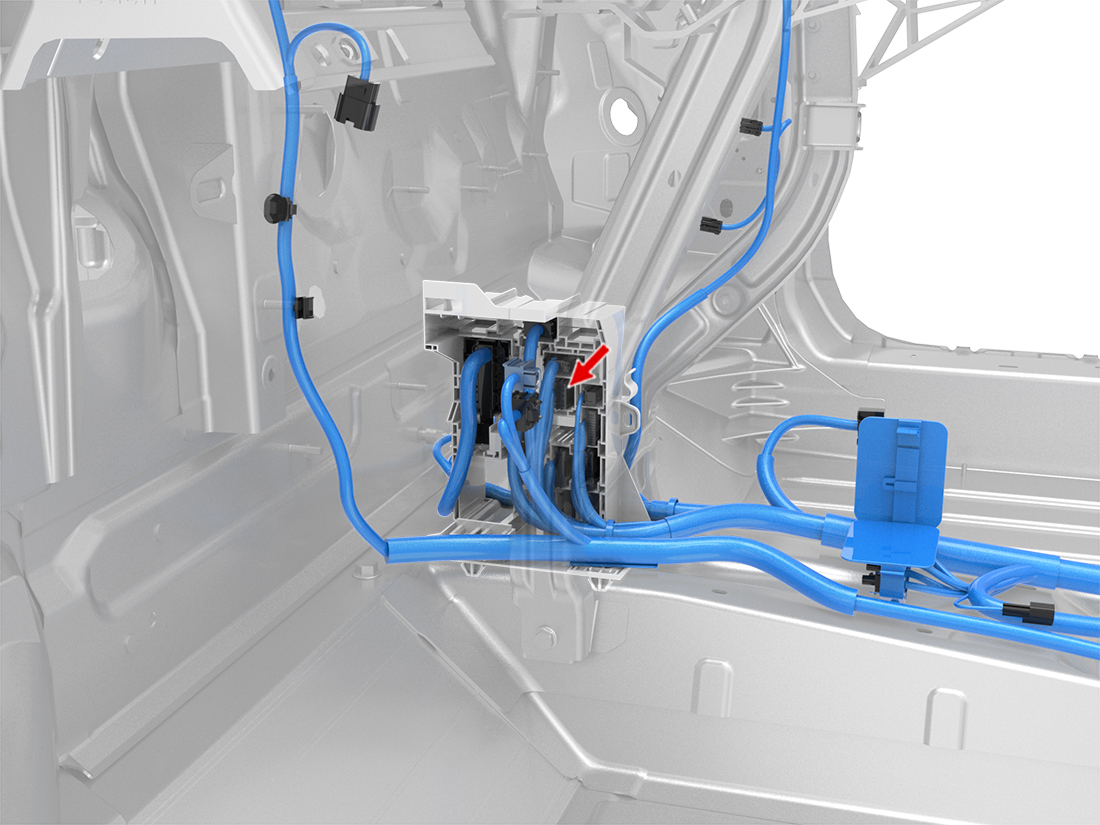

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13			X701	8
3	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X971M	10
4	SUMITOMO	8100-3622	0.64x0.64M	VT/WH	0.35			X703	11
5	SUMITOMO	8100-3622	0.64x0.64M	BK	0.35			X971M	11
6	SUMITOMO	8100-3622	0.64x0.64M	GY/WH	0.35			X701	9
7
8
9	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X701	19
10	SUMITOMO	8100-3622	0.64x0.64M	VT	0.35			X703	22
11	SUMITOMO	8100-3622	0.64x0.64M	GY	0.35			X701	20
