X950F - x-lhd-sop8

Tesla Part Number

1003314-00-A

Connector

MOLEX 33472-1201

Color

BK

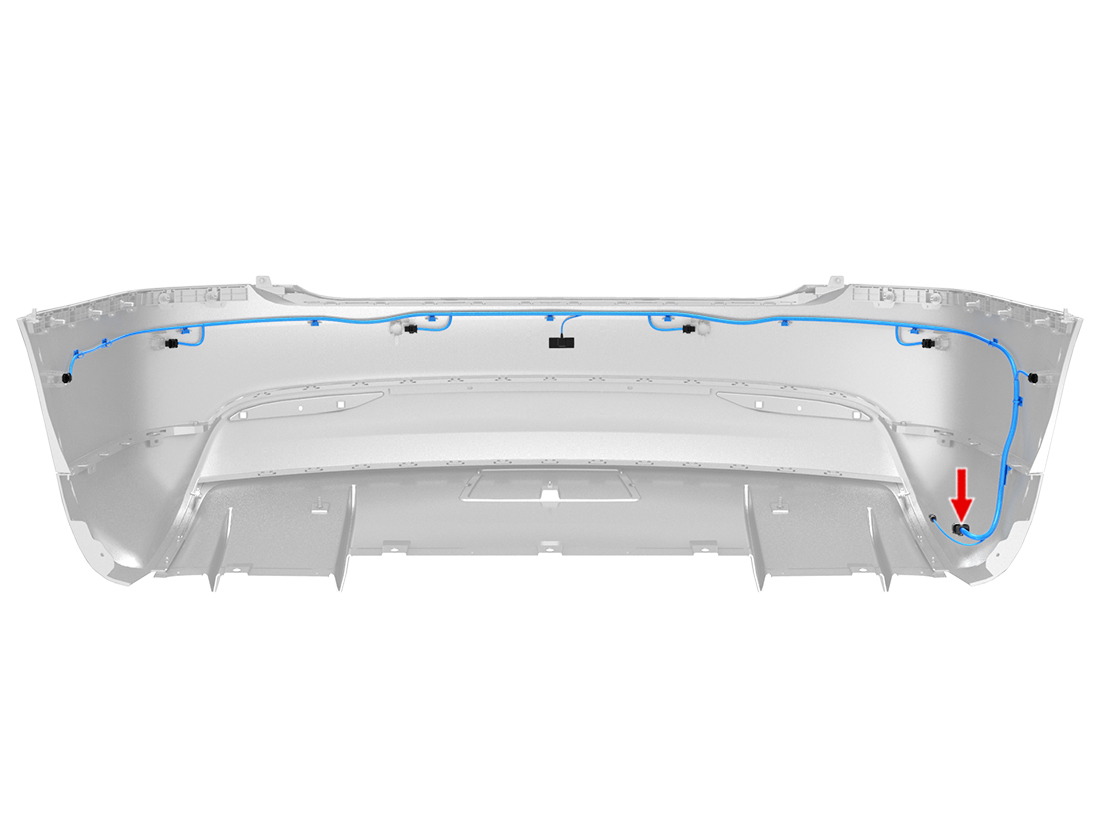

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	MOLEX	33012-3004	1.5x0.8F	RD	0.50	TESLA	MAT-120-240
3	MOLEX	33012-3004	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
4	MOLEX	33012-3004	1.5x0.8F	VT/WH	0.50	TESLA	MAT-120-240	X147	2
5	MOLEX	33012-3004	1.5x0.8F	VT	0.50	TESLA	MAT-120-240	X146	2
6
7
8	MOLEX	33012-3004	1.5x0.8F	WH	0.50	TESLA	MAT-120-240	X138	2
9	MOLEX	33012-3004	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X139	2
10	MOLEX	33012-3004	1.5x0.8F	GY/WH	0.50	TESLA	MAT-120-240	X145	2
11	MOLEX	33012-3004	1.5x0.8F	GY	0.50	TESLA	MAT-120-240	X144	2
12
