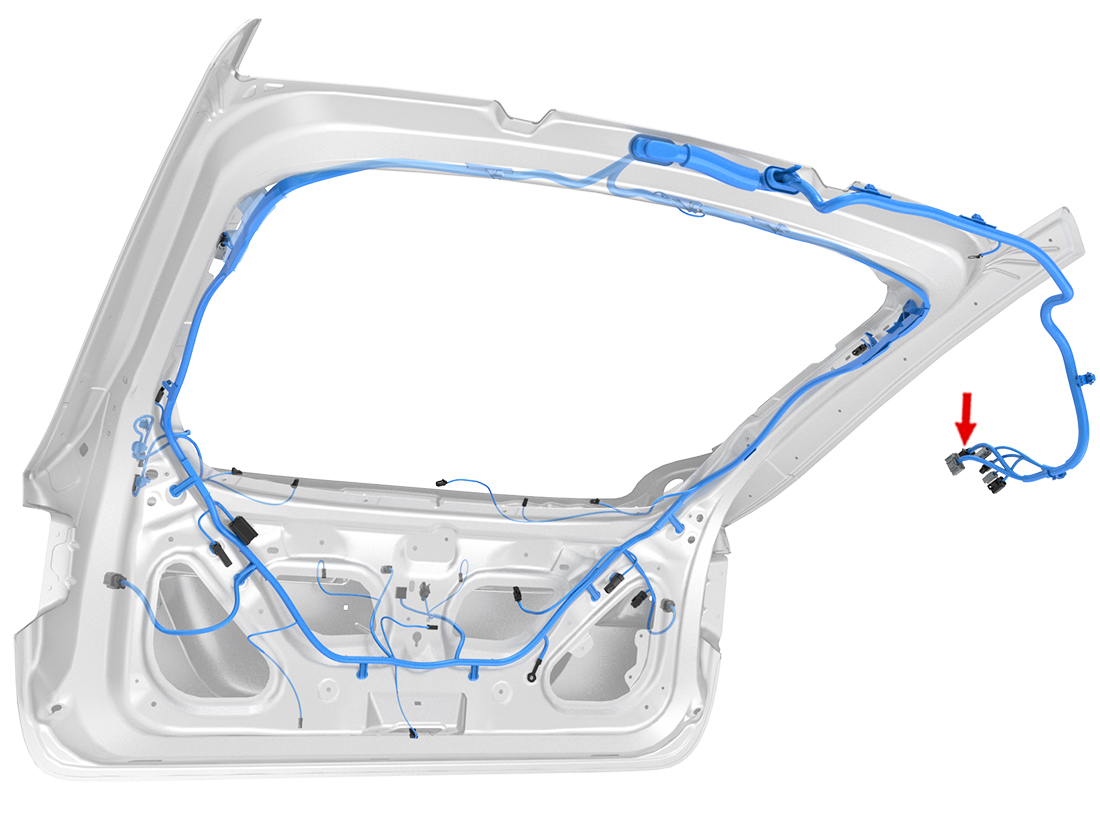

X955F - x-lhd-sop8

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.50	X343	2
3	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50	X271	4
4	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X271	3
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50	X271	2
6	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X296	1
7	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X274	1
8	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X347	1
9	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X349	1
10	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X342	3
11
12
13	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.50	X344	2
14	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X273	4
15	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X273	3
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50	X273	2
17	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.50	X340	1
18	SUMITOMO	8100-3624	0.64x0.64F	BU	0.35	X340	3
19	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35	X340	4
20	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35	X349	2
21	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35	X342	1
22
