X962 - x-lhd-sop8

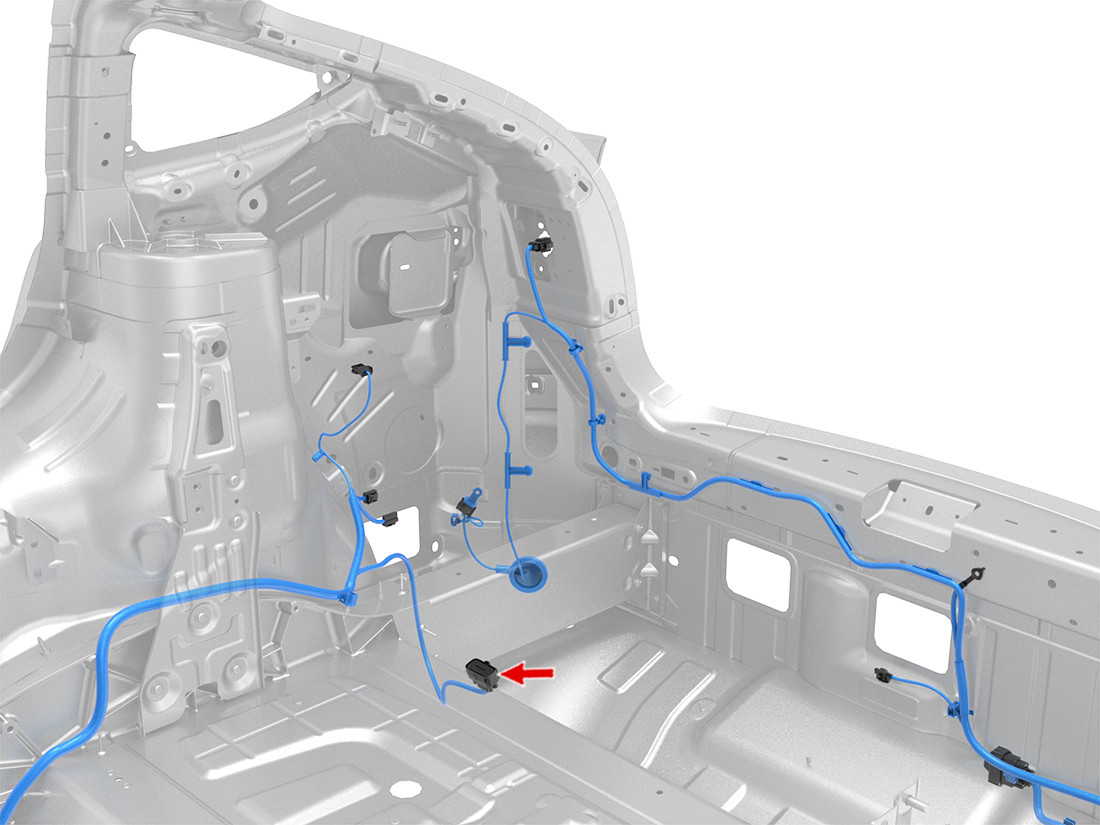

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1326032-3 | 2.8x0.8FS | VT | 0.75 | YAZAKI | 7158-3111-60 | X958 | 9 |
| 2 | MOLEX | 33012-3003 | 1.5x0.8F | BU | 0.50 | TESLA | MAT-120-240 | X958 | 10 |
| 3 | MOLEX | 33012-3003 | 1.5x0.8F | GN/WH | 0.50 | TESLA | MAT-120-240 | X958 | 11 |
| 4 | MOLEX | 33012-3003 | 1.5x0.8F | RD/WH | 0.50 | TESLA | MAT-120-240 | X958 | 6 |
| 5 | MOLEX | 33012-3003 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-120-240 | X958 | 14 |
| 6 | MOLEX | 33012-3003 | 1.5x0.8F | GY | 0.50 | TESLA | MAT-120-240 | X958 | 15 |
| 7 | MOLEX | 33012-3003 | 1.5x0.8F | BU/WH | 0.50 | TESLA | MAT-120-240 | X958 | 4 |
| 8 | AMP | 1326032-3 | 2.8x0.8FS | BK | 0.75 | YAZAKI | 7158-3111-60 | GND_C2 | 1 |
| 9 | |||||||||
| 10 | MOLEX | 33012-3003 | 1.5x0.8F | BN | 0.50 | TESLA | MAT-120-240 | X958 | 12 |
| 11 | MOLEX | 33012-3002 | 1.5x0.8F | BK | 0.75 | TESLA | MAT-120-240 | X958 | 13 |
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
