X970F - x-lhd-sop8

Tesla Part Number

1042618-01-A

Connector

SUMITOMO 6098-5662

Color

BK

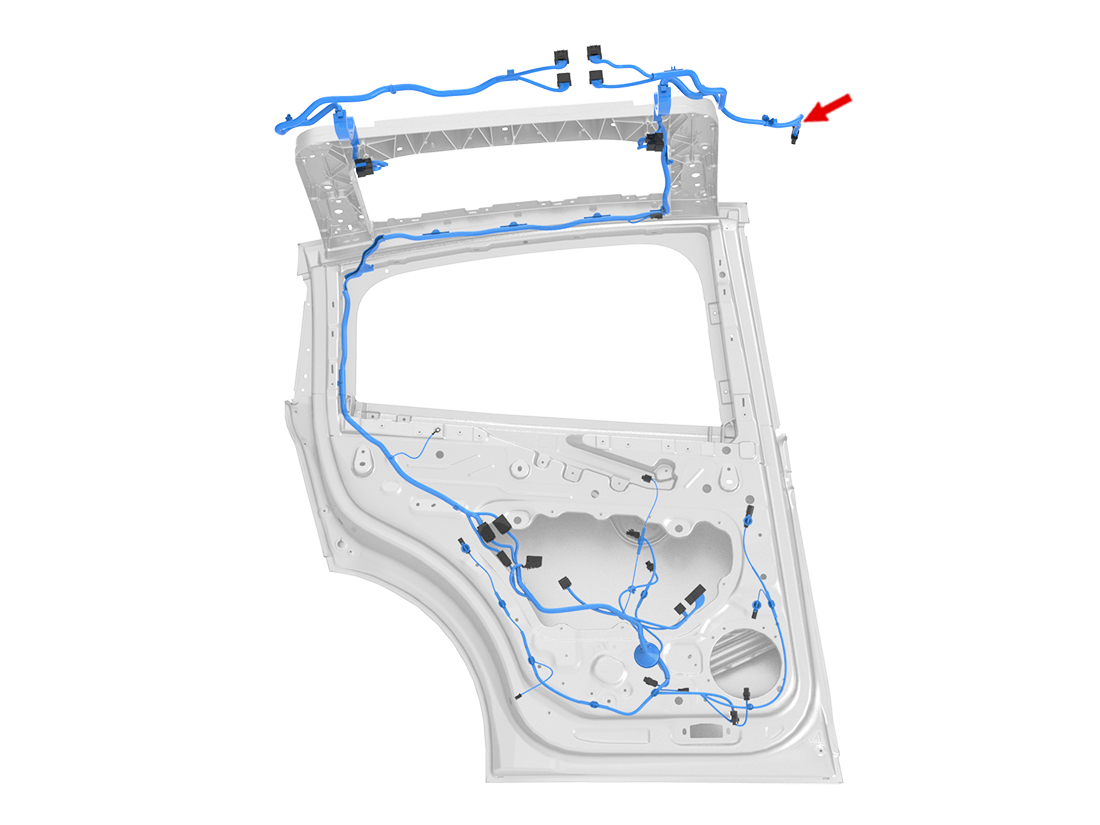

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0213	1.5x0.64F	BU	0.75			X973M	2
2	SUMITOMO	8240-0214	1.5x0.64F	RD/GN	2.00			X973M	1
3	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50			X973M	10
4	SUMITOMO	8240-0214	1.5x0.64F	GY	1.50			X973M	18
5	SUMITOMO	8240-0215	1.5x0.64F	BN	0.35			X973M	7
6	SUMITOMO	8240-0214	1.5x0.64F	BK/WH	2.00			X973M	11
7
8	SUMITOMO	8100-3625	0.64x0.64F	OG	0.35			X973M	8
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X973M	16
10	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35			X973M	3
11	SUMITOMO	8100-3624	0.64x0.64F	BK	0.35			X973M	13
12	SUMITOMO	8240-0213	1.5x0.64F	BK	1.00			GND_REAR_DOOR_LH	1
13
14	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X973M	4
15	SUMITOMO	8100-3624	0.64x0.64F	VT	0.35			X973M	5
16	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35			X972M	15
17	SUMITOMO	8100-3624	0.64x0.64F	GY	0.35			X972M	22
18
