X980M - x-lhd-sop8

Tesla Part Number

1042577-00-A

Connector

SUMITOMO 6098-3869

Color

WH

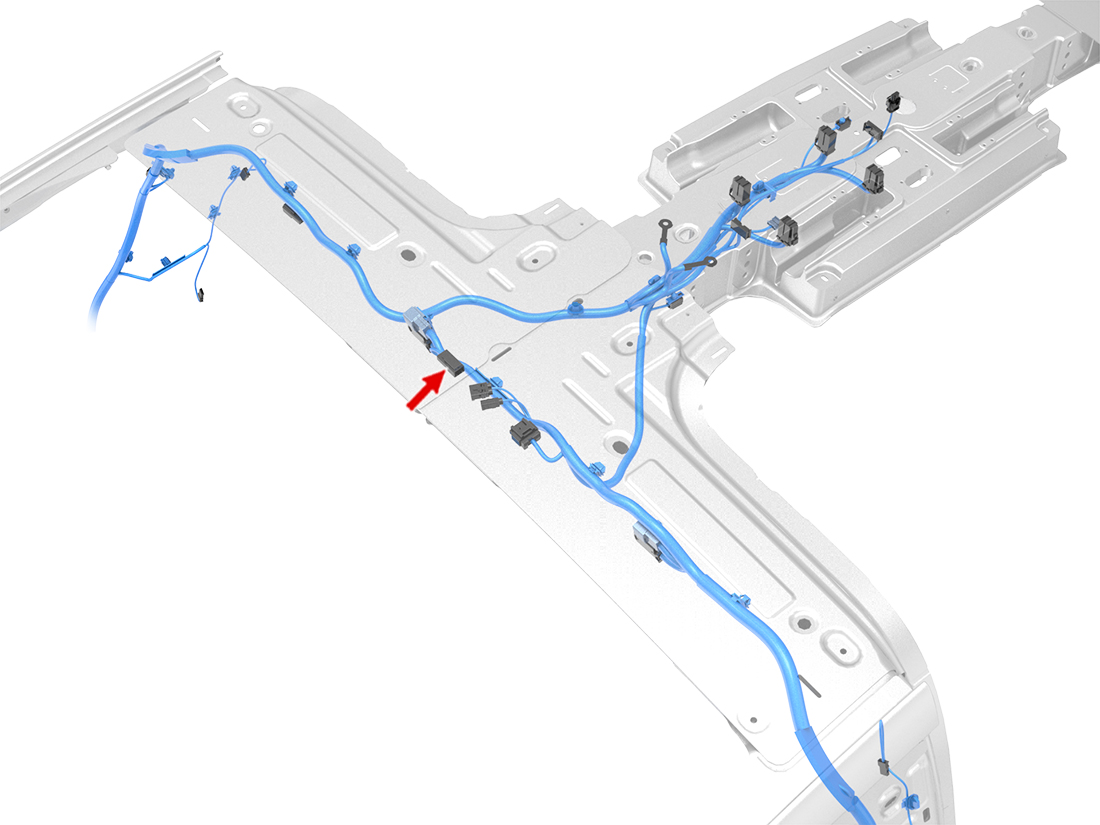

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X924M	24
2	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13			X924M	4
3	SUMITOMO	8230-4878	0.64x0.64M	GY	0.13			X924M	18
4	SUMITOMO	8230-4878	0.64x0.64M	RD	0.13			X924M	3
5	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50			GND_LB	1
6	SUMITOMO	8100-3622	0.64x0.64M	RD/BU	0.35			X925M	10
7
8	SUMITOMO	8100-3622	0.64x0.64M	GN	0.35			X925M	15
9
10	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50			GND_LB	1
