X031 - x-lhd-sop9

Tesla Part Number

1046597-00-A

Connector

DELPHI 13520384

Color

BN

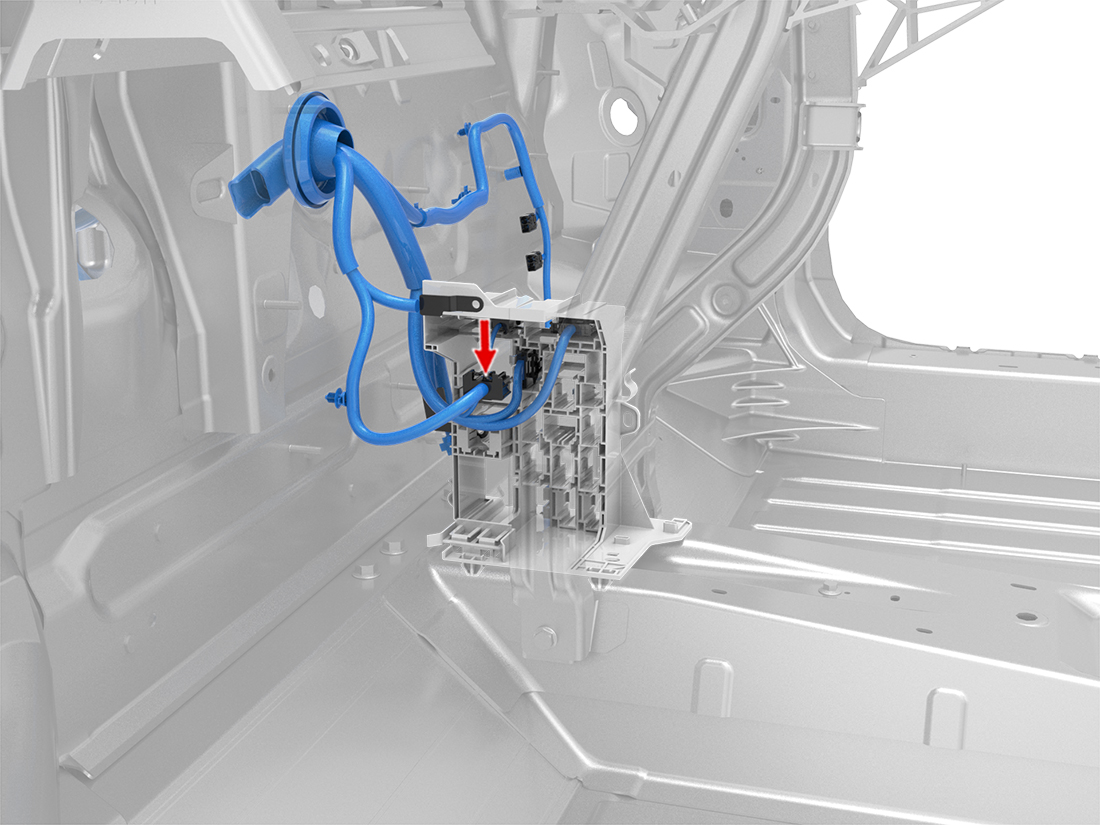

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	13526680	1.5x0.6F	RD/BU	0.50			X995F	2
2	DELPHI	13526680	1.5x0.6F	RD/WH	0.50			X002	9
3	DELPHI	13526680	1.5x0.6F	RD/VT	0.50			X002	19
4
5	DELPHI	13526680	1.5x0.6F	RD/BU	0.50			X002	16
6	DELPHI	13526680	1.5x0.6F	RD/BU	0.50			X003	30
7
8	DELPHI	13526680	1.5x0.6F	RD/BK	0.50			X002	1
9
10
11	DELPHI	13526680	1.5x0.6F	RD/WH	0.50			X900M	3
12	DELPHI	13526680	1.5x0.6F	VT	0.35			X910F	18
13	DELPHI	13526680	1.5x0.6F	RD/BU	0.50			X150	20
14
15
16	DELPHI	13526680	1.5x0.6F	RD/WH	0.50			X002	14
