X061 - x-lhd-sop9

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

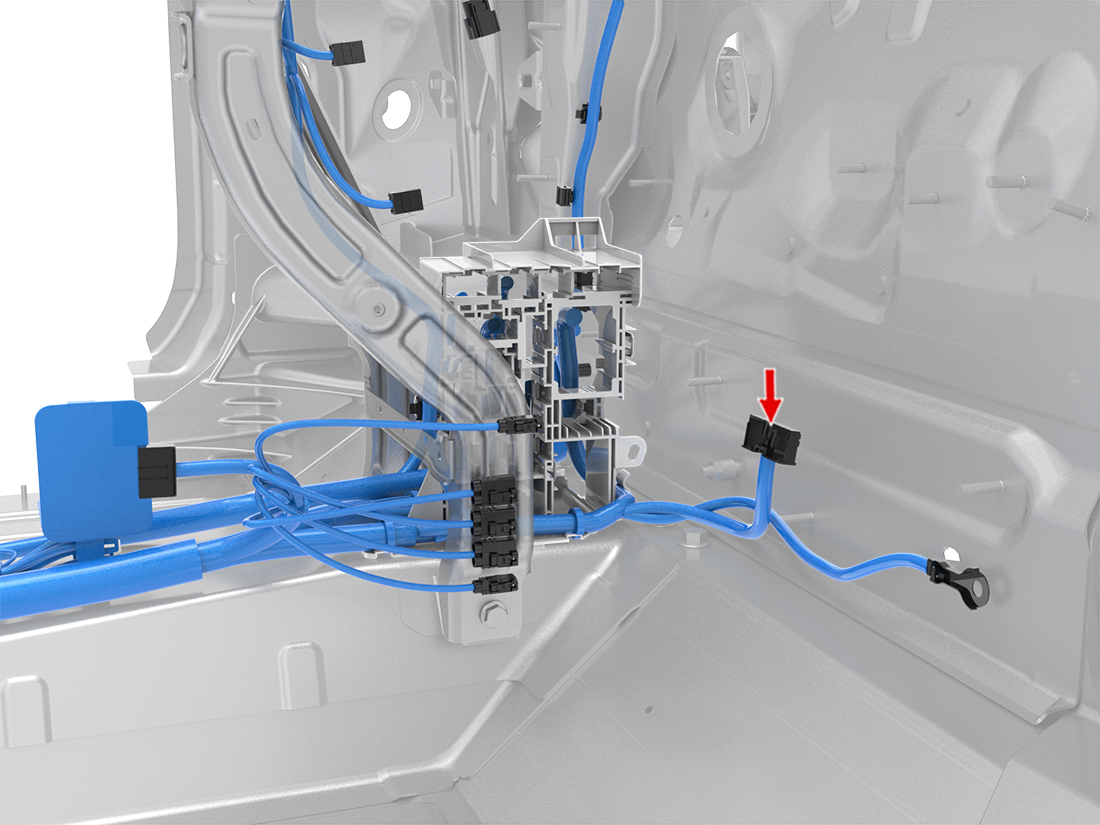

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GY/BU	0.50
2	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X708	13
3	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X708	2
4	SUMITOMO	8100-3624	0.64x0.64F	GN/WH	0.35			X703	5
5	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X703	16
6
7
8	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X550	3
9	SUMITOMO	8100-3624	0.64x0.64F	RD/VT	0.35			X029	8
10
11
12
13
14	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13			X550	1
15	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13			X550	2
16	SUMITOMO	8240-0182	0.64x0.64F	GY	0.13			X553	1
17	SUMITOMO	8240-0182	0.64x0.64F	VT	0.13			X553	2
18	SUMITOMO	8100-3624	0.64x0.64F	VT/WH	0.35			X913M	16
19
20
21
22
23
24	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X911M	8
25	SUMITOMO	8240-0182	0.64x0.64F	BN	0.13			X911M	4
26	SUMITOMO	8100-3624	0.64x0.64F	GN	0.35			X910M	8
27	SUMITOMO	8100-3624	0.64x0.64F	RD	0.35			X910M	19
28
29
30
31
32
33
34
35
36	SUMITOMO	8100-3624	0.64x0.64F	GY/WH	0.35			X028	5
37	SUMITOMO	8240-0182	0.64x0.64F	BU	0.13			X553	3
38	SUMITOMO	8100-3624	0.64x0.64F	VT/WH	0.35			X911M	1
39	SUMITOMO	8100-3625	0.64x0.64F	RD/BU	0.50			X131A	14
40
