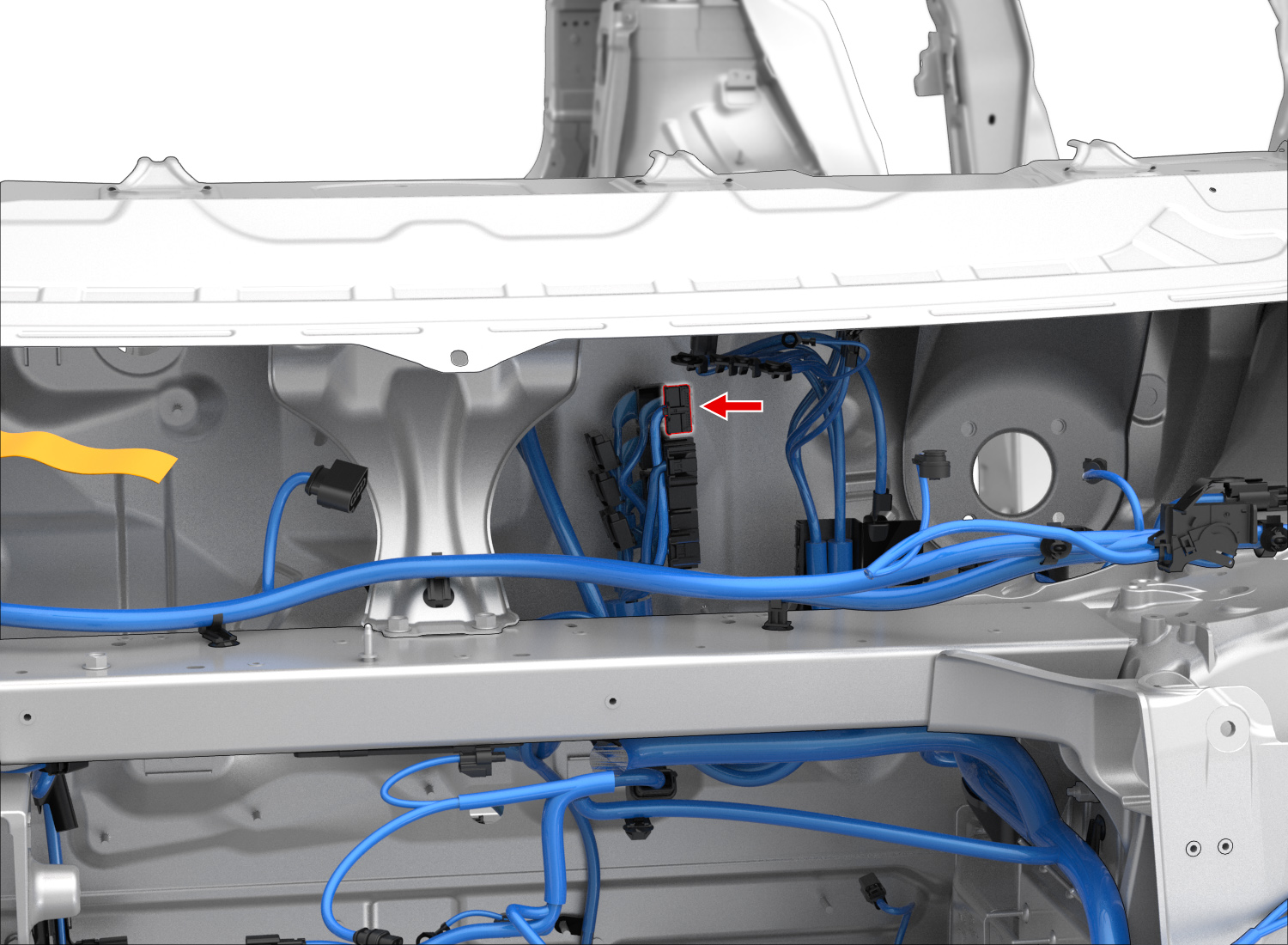

X065 - x-lhd-sop9

Tesla Part Number

1091274-00-A

Connector

AMP 2141576-1

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1
2	AMP	2-1703930-1	0.50x0.40F	RD/GN	0.35	X913F	3
3
4	AMP	2-1703930-1	0.50x0.40F	RD	0.35	X083	3
5
6
7
8
9
10	AMP	2-1703930-1	0.50x0.40F	BN	0.35	X913F	7
11
12	AMP	2-1703930-1	0.50x0.40F	GY	0.35	X087	10
13	AMP	2-1703930-1	0.50x0.40F	RD/VT	0.35	X913F	6
14	AMP	2-1703930-1	0.50x0.40F	RD/WH	0.35	X084	3
15
16	AMP	2-1703930-1	0.50x0.40F	BK/GY	0.35	X087	7
17	AMP	2-1703930-1	0.50x0.40F	VT	0.35	X087	9
18	AMP	2-1703930-1	0.50x0.40F	WH	0.35	X084	2
19	AMP	2-1703930-1	0.50x0.40F	BK/WH	0.35	X084	1
20	AMP	2-1703930-1	0.50x0.40F	BK/VT	0.35	X913F	8
21	AMP	2-1703930-1	0.50x0.40F	YE/WH	0.35	X751	6
22	AMP	2-1703930-1	0.50x0.40F	YE	0.35	X751	17
23	AMP	1-1703930-1	0.50x0.40F	WH	0.13	X750	4
24	AMP	1-1703930-1	0.50x0.40F	GN	0.13	X750	15
25
26
27	AMP	2-1703930-1	0.50x0.40F	GY	0.35	X083	2
28	AMP	2-1703930-1	0.50x0.40F	BK/GY	0.35	X083	1
29	AMP	2-1703930-1	0.50x0.40F	BK	0.35	X913F	5
30	AMP	2-1703930-1	0.50x0.40F	GN	0.35	X913F	4
31
32
