X068 - x-lhd-sop9

Tesla Part Number

1039297-00-A

Connector

SUMITOMO 6098-4008

Color

WH

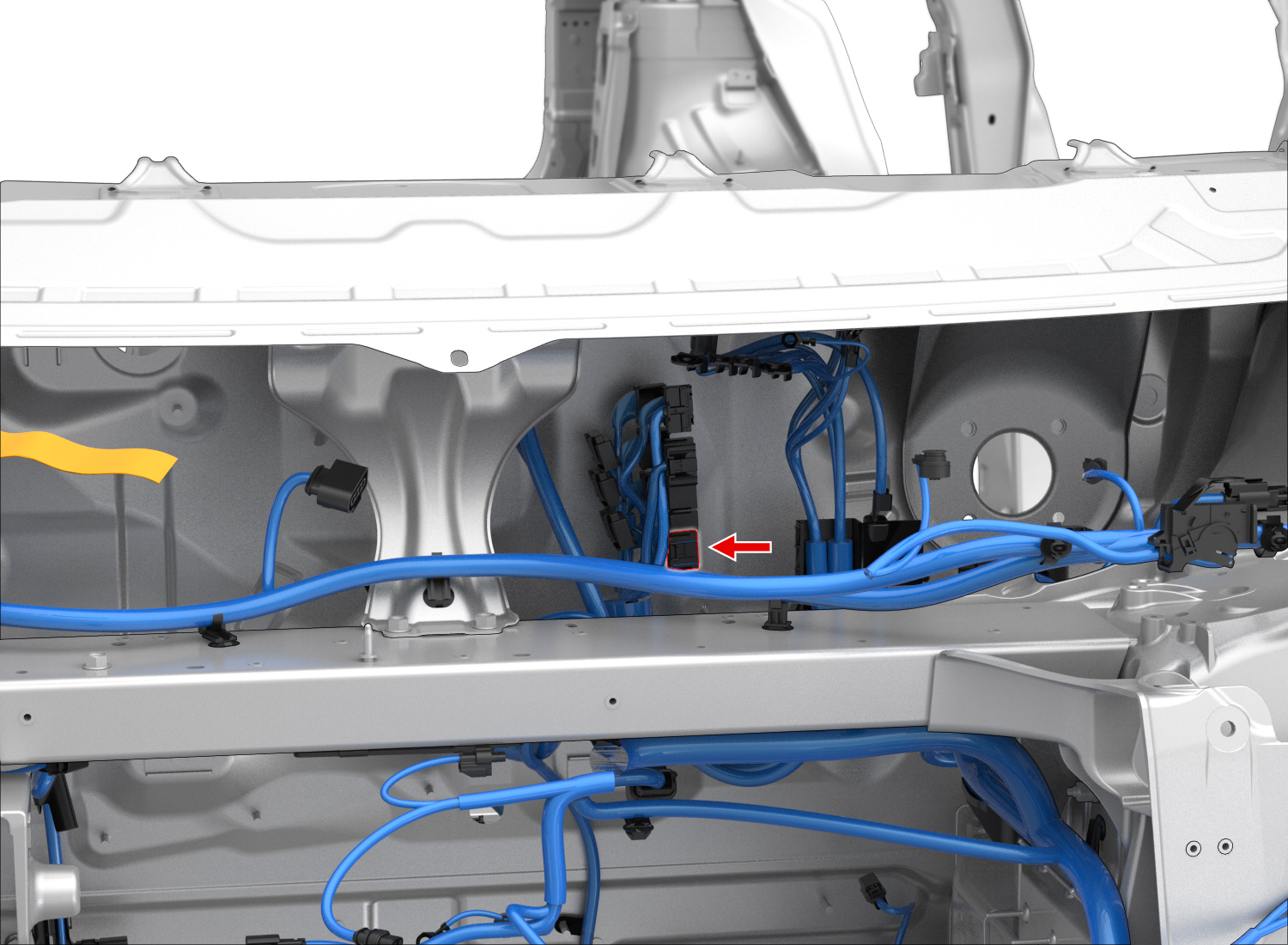

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X091	3
2	SUMITOMO	8100-3625	0.64x0.64F	BR	0.35			X091	4
3	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X092	2
4	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X911F	14
5	SUMITOMO	8100-3625	0.64x0.64F	BU/WH	0.35			X911F	13
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X091	1
7	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X091	2
8	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X092	1
9	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X092	3
10	SUMITOMO	8100-3625	0.64x0.64F	BR/WH	0.35			X092	4
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X910F	22
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X910F	1
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X910F	12
14	SUMITOMO	8100-3625	0.64x0.64F	BR	0.35			X910F	13
15	SUMITOMO	8100-3625	0.64x0.64F	BR/WH	0.35			X911F	3
16	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X911F	2
