X083 - x-lhd-sop9

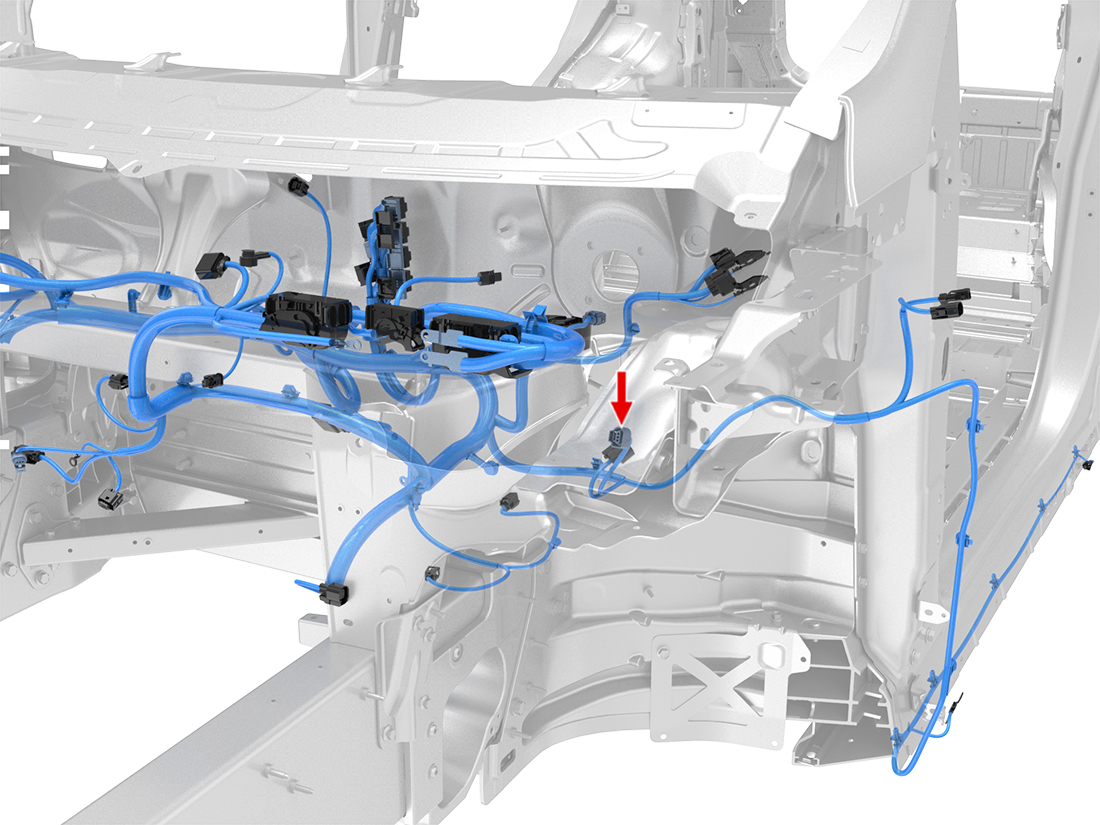

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1564324-2 | 1.5x0.6FS | BK/GY | 0.35 | AMP | 1718705-1 | X065 | 28 |
| 2 | AMP | 1564324-2 | 1.5x0.6FS | GY | 0.35 | AMP | 1718705-1 | X065 | 27 |
| 3 | AMP | 1564324-2 | 1.5x0.6FS | RD | 0.35 | AMP | 1718705-1 | X065 | 4 |
