X086 - x-lhd-sop9

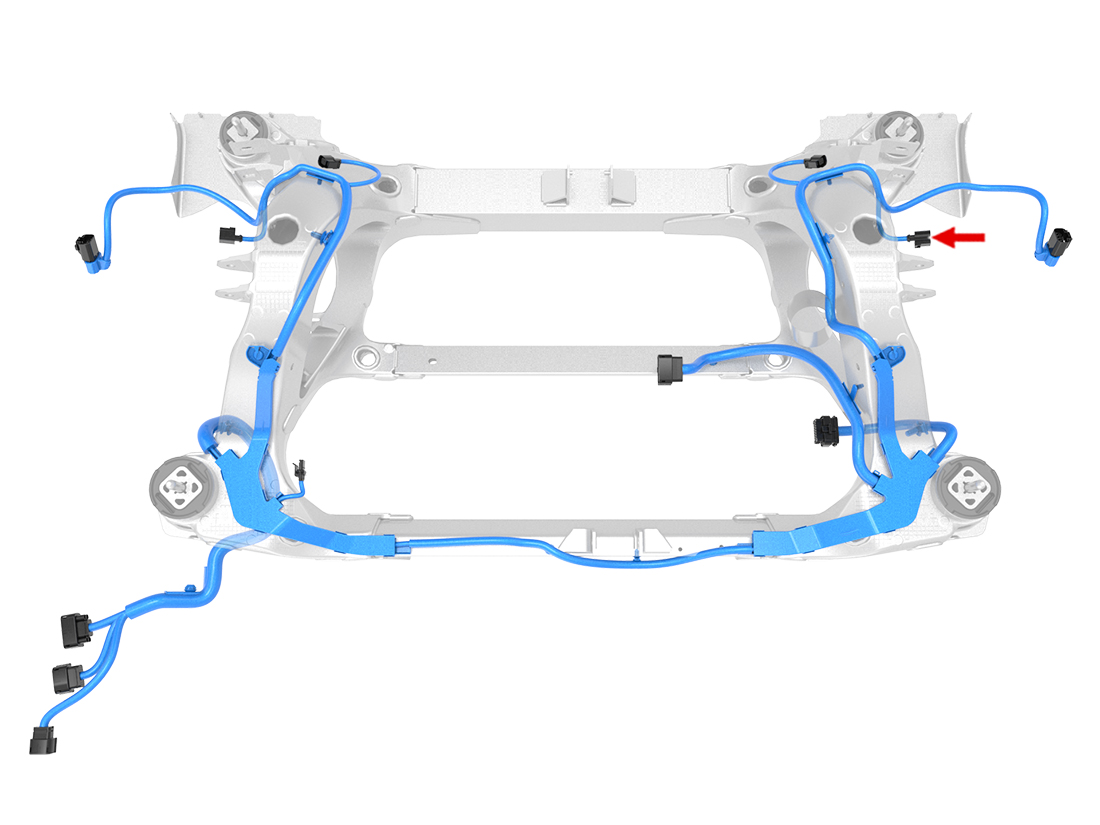

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1241380-2 | 1.5x0.6FS | BK/VT | 0.50 | X953F | 9 | ||
| 2 | AMP | 1241380-2 | 1.5x0.6FS | BN | 0.50 | X953F | 8 | ||
| 3 | AMP | 1241380-2 | 1.5x0.6FS | RD/VT | 0.50 | X953F | 7 |
