X088 - x-lhd-sop9

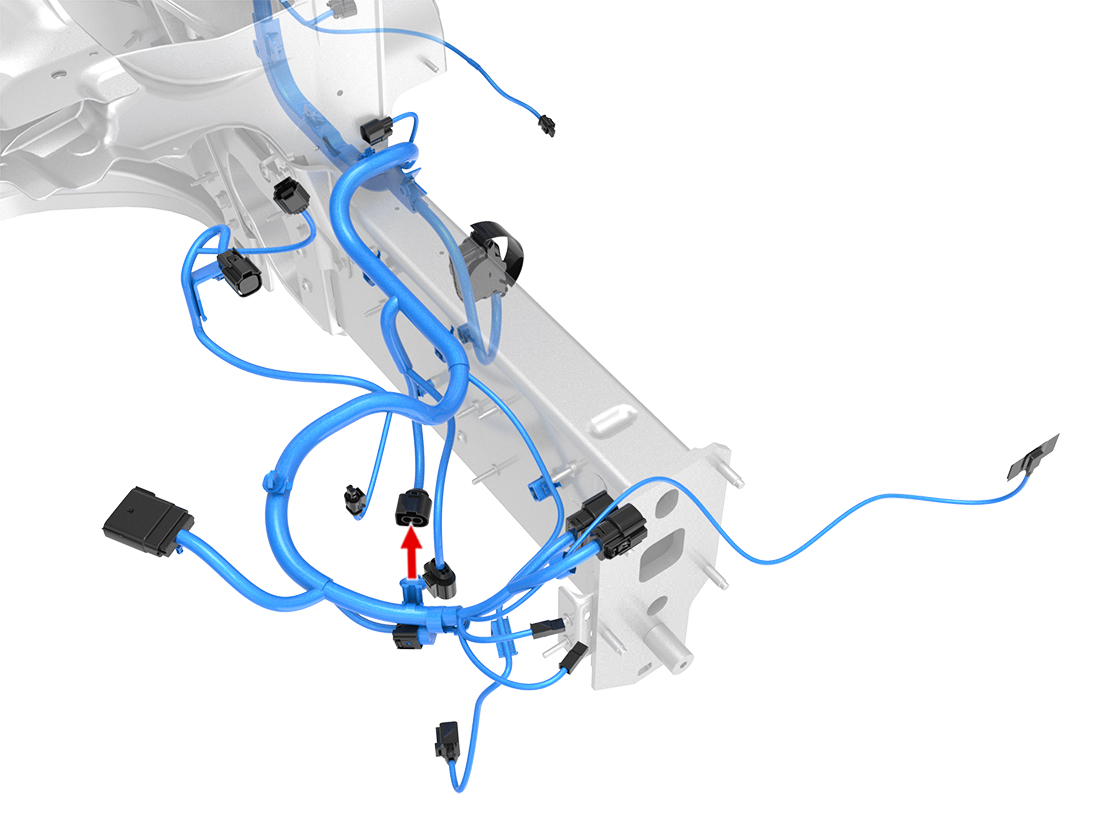

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 969044-1 | 4.8x0.8FS | RD/BU | 4.00 | AMP | 1394512-1 | X034 | 1 |
| 2 | AMP | 969044-1 | 4.8x0.8FS | BK | 4.00 | AMP | 1394512-1 | GND_FR_RH1 | 1 |
