X089 - x-lhd-sop9

Tesla Part Number
1053199-00-A
Connector
KOSTAL 9444031
Color
BK

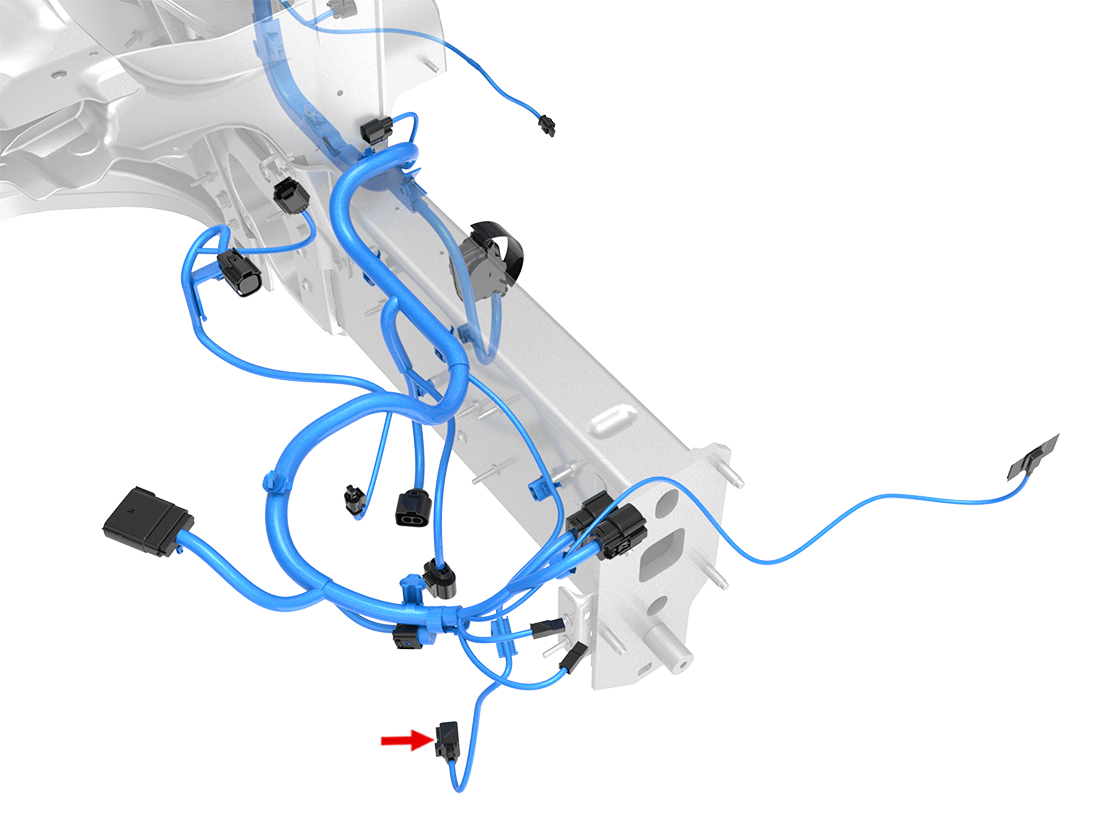

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1KOSTAL221244920502.8x0.8FSVT0.35KOSTAL10800444522X06615
2KOSTAL221244920502.8x0.8FSGY0.35KOSTAL10800444522X0664
3KOSTAL221244920502.8x0.8FSBN0.35KOSTAL10800444522X06614
