X093A - x-lhd-sop9

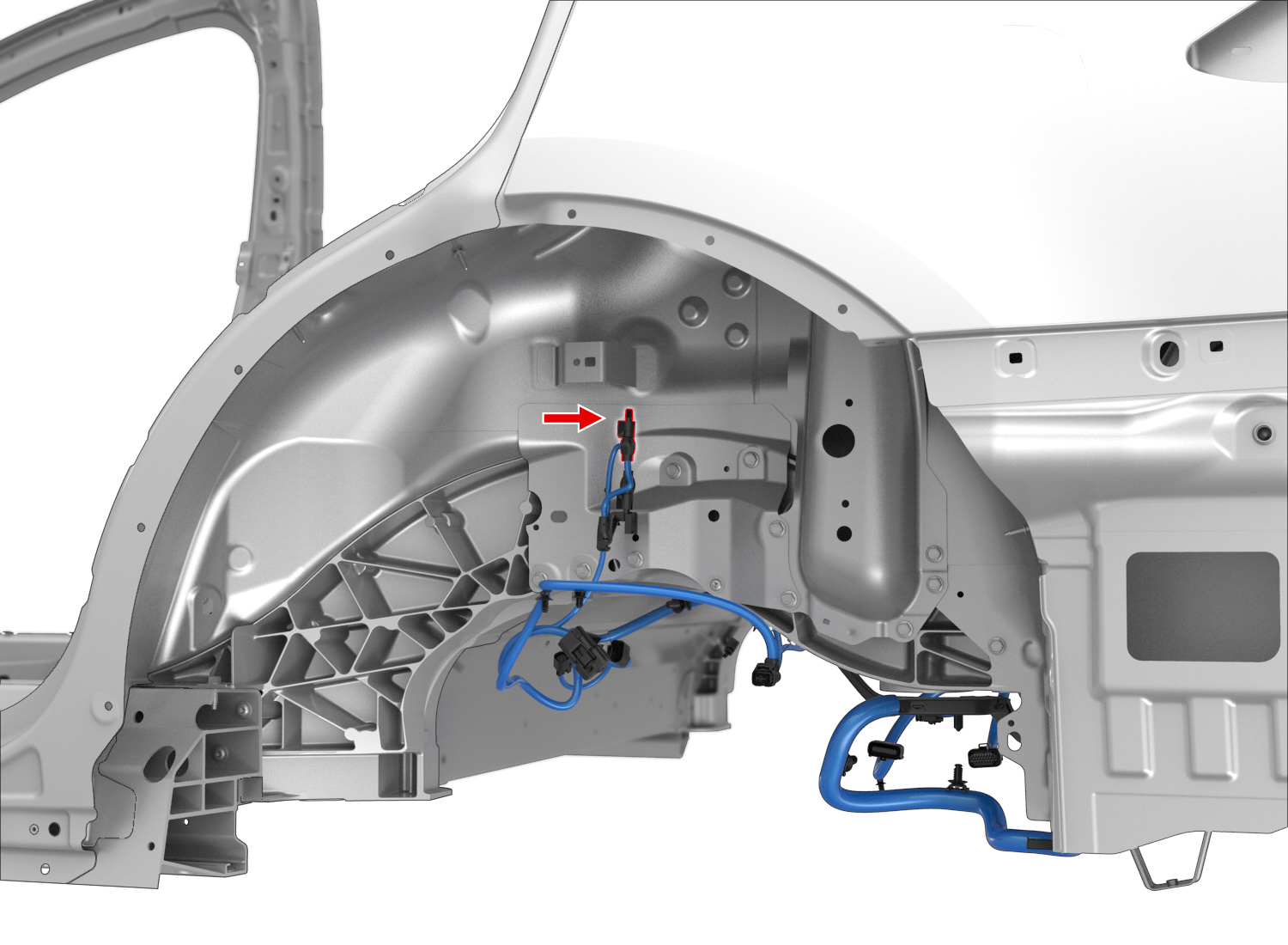

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | PIA | TERM-SN | PIA-F | BK | 0.50 | X953F | 16 | ||
| 2 | PIA | TERM-SN | PIA-F | WH | 0.50 | X953F | 15 |
