X101 - x-lhd-sop9

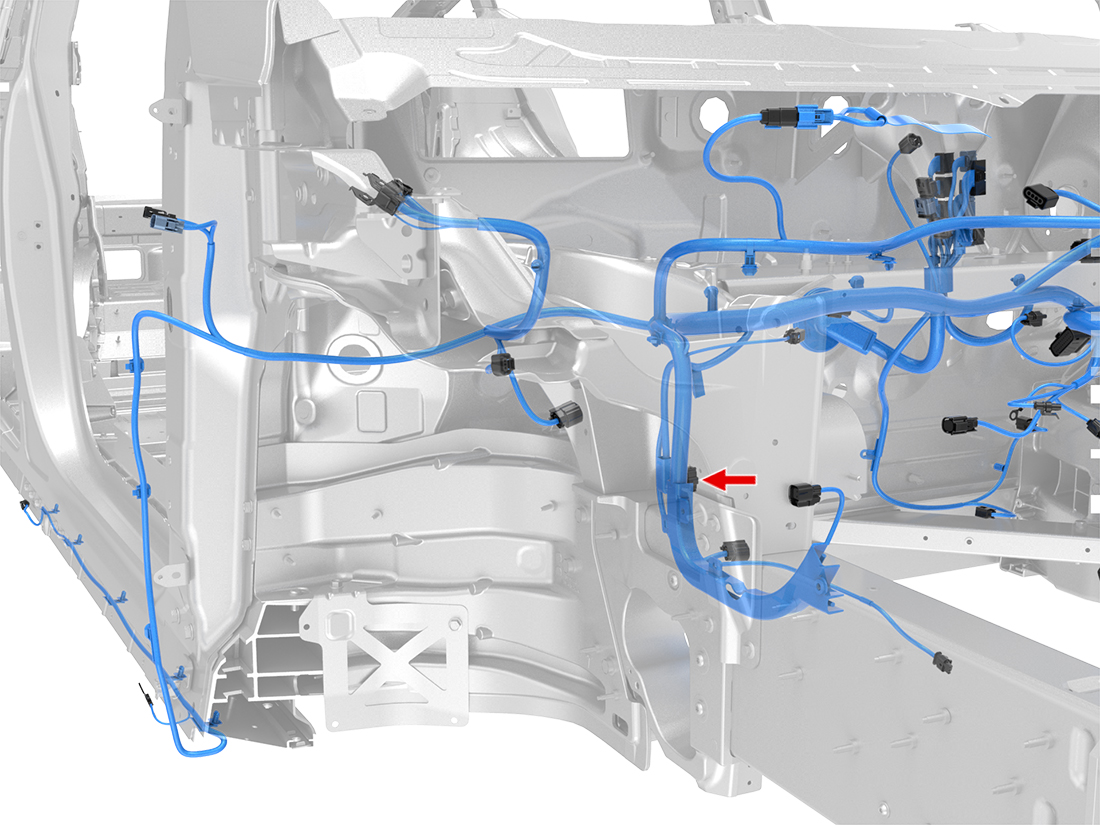

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3003 | 1.5x0.8F | RD/BK | 0.50 | TESLA | MAT-120-240 | X752 | 13 |
| 2 | MOLEX | 33012-3003 | 1.5x0.8F | RD/WH | 0.50 | TESLA | MAT-120-240 | X750 | 9 |
| 3 | MOLEX | 33012-3003 | 1.5x0.8F | RD | 0.50 | TESLA | MAT-120-240 | X750 | 20 |
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | MOLEX | 33012-3003 | 1.5x0.8F | YE | 0.50 | TESLA | MAT-120-240 | X995F | 19 |
| 9 | MOLEX | 33012-3003 | 1.5x0.8F | YE | 0.50 | TESLA | MAT-120-240 | X913F | 12 |
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
