X115 - x-lhd-sop9

Tesla Part Number

1015274-00-A

Connector

MOLEX 31403-6110

Color

BK

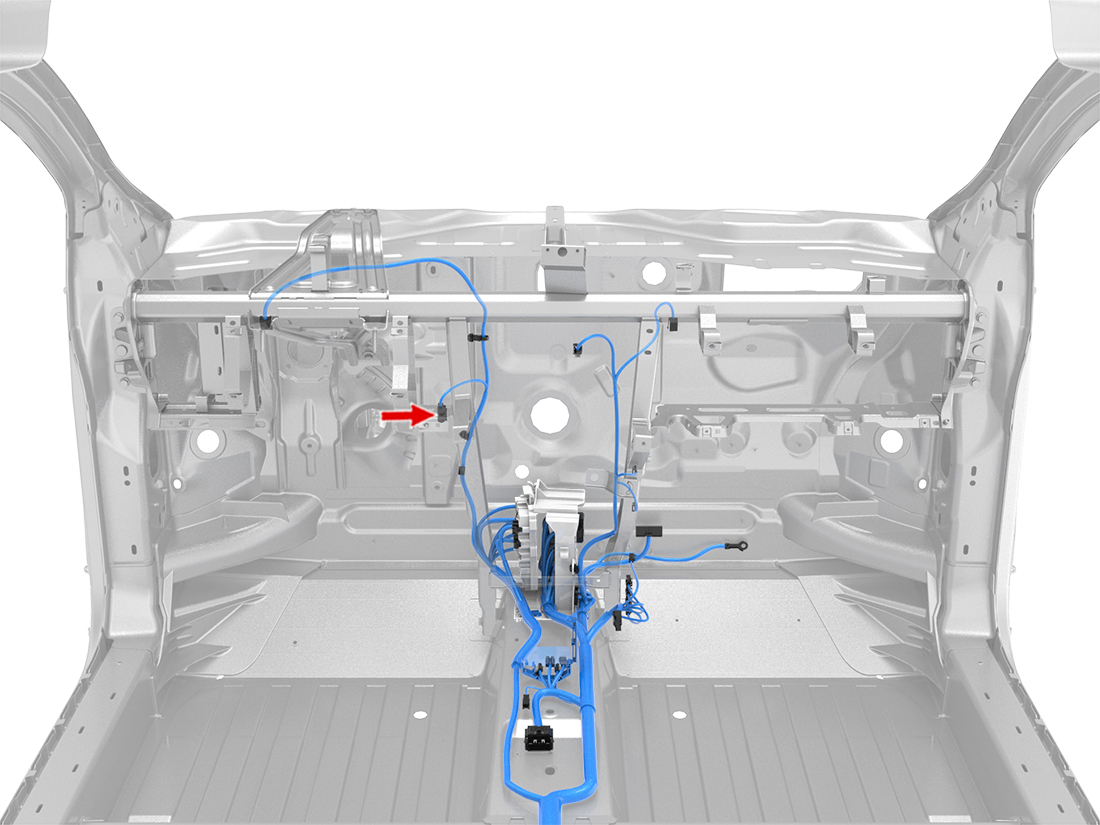

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33467-0023	0.64x0.64F	OG	0.50	TESLA	MAT-120-206	X951M	2
2	MOLEX	33467-0023	0.64x0.64F	BN	0.50	TESLA	MAT-120-206	X951M	10
3	MOLEX	33467-0023	0.64x0.64F	GN	0.50	TESLA	MAT-120-206	X951M	3
4	MOLEX	33467-0023	0.64x0.64F	GY	0.50	TESLA	MAT-120-206	X951M	12
5	MOLEX	33467-0023	0.64x0.64F	BU	0.50	TESLA	MAT-120-206	X951M	4
6	MOLEX	33467-0023	0.64x0.64F	VT	0.50	TESLA	MAT-120-206	X951M	11
