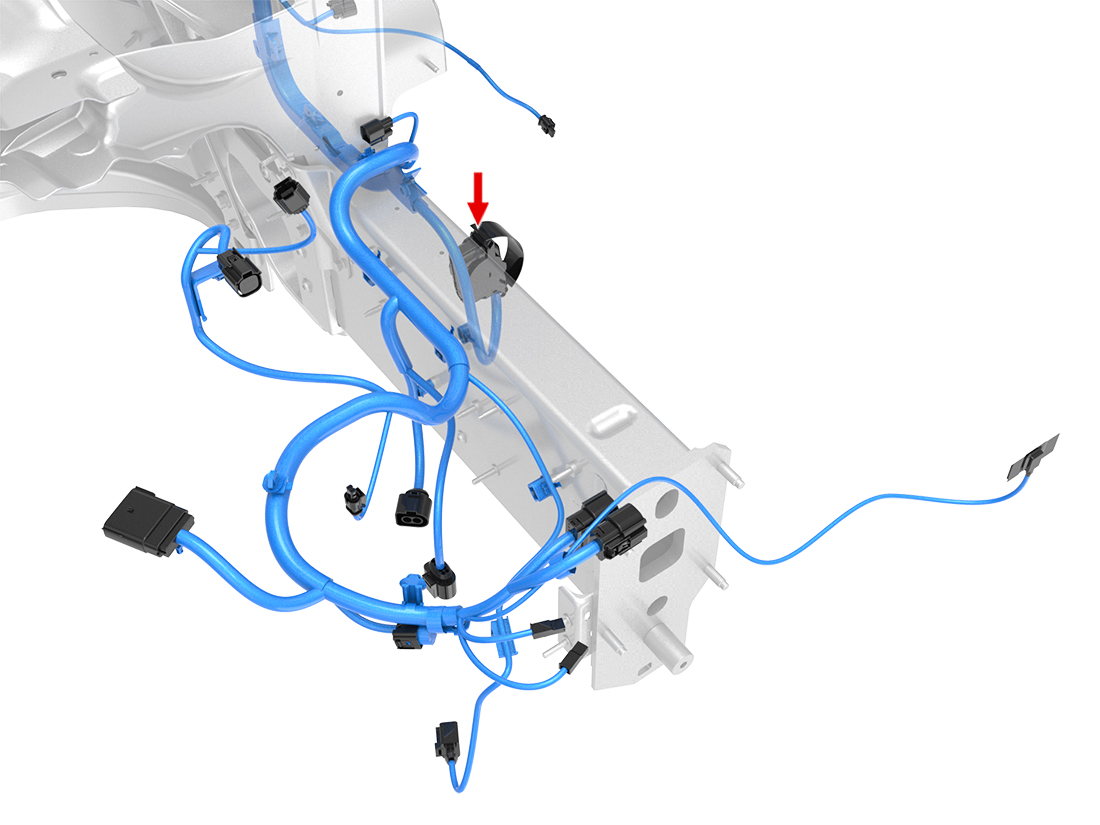

X151 - x-lhd-sop9

Tesla Part Number

1038302-00-A

Connector

BOSCH 1928405654

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928498807	4.8x0.8FS	RD	4	BOSCH	1928301086	X033	1
2
3
4	BOSCH	1928498705	1.5x0.6FS	GY	0.50	BOSCH	1928301118	X155	2
5
6
7
8	BOSCH	1928498705	1.5x0.6FS	VT	0.50	BOSCH	1928301118	X154	2
9
10
11
12
13	BOSCH	1928498807	4.8x0.8FS	BK/GY	4.00	BOSCH	1928301086	GND_FR_RH1	1
14	BOSCH	1928498705	1.5x0.6FS	GN	0.50	BOSCH	1928301118	X750	16
15
16	BOSCH	1928498705	1.5x0.6FS	GY/WH	0.50	BOSCH	1928301118	X155	1
17	BOSCH	1928498705	1.5x0.6FS	BK/WH	0.50	BOSCH	1928301118	X911F	18
18	BOSCH	1928498705	1.5x0.6FS	GN	0.50	BOSCH	1928301118	X911F	10
19	BOSCH	1928498705	1.5x0.6FS	VT/WH	0.50	BOSCH	1928301118	X154	1
20	BOSCH	1928498705	1.5x0.6FS	YE	0.50	BOSCH	1928301118	X751	13
21
22
23
24
25	BOSCH	1928498806	2.8x0.8FS	RD/WH	1.50	DELPHI	15324976	X001	9
26	BOSCH	1928498705	1.5x0.6FS	GN/WH	0.50	BOSCH	1928301118	X750	5
27
28	BOSCH	1928498705	1.5x0.6FS	RD/WH	0.50	BOSCH	1928301118	X001	13
29	BOSCH	1928498705	1.5x0.6FS	WH	0.50	BOSCH	1928301118	X911F	19
30
31	BOSCH	1928498705	1.5x0.6FS	GN/WH	0.50	BOSCH	1928301118	X911F	9
32
33	BOSCH	1928498705	1.5x0.6FS	YE/WH	0.50	BOSCH	1928301118	X751	2
34
35
36
37
38	BOSCH	1928498806	2.8x0.8FS	BK/WH	2.00	BOSCH	1928301206	GND_FR_RH1	1
