X158A - x-lhd-sop9

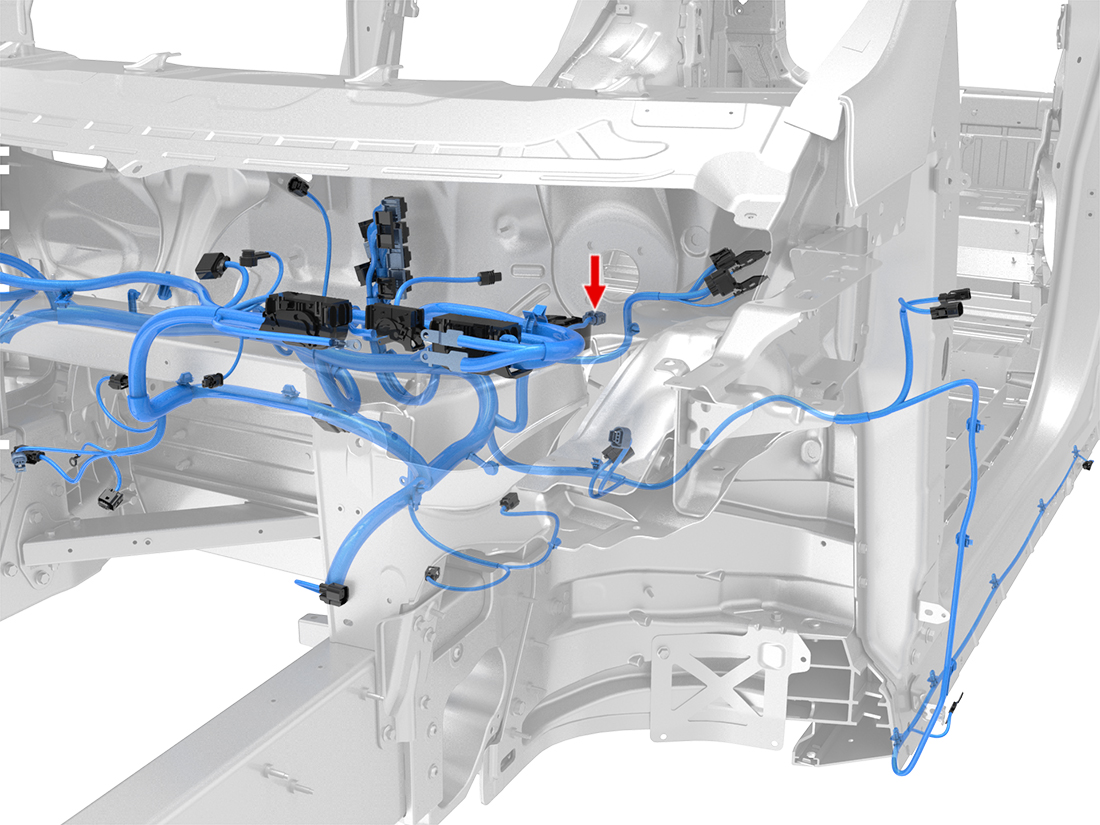

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-965906-1 | 0.63x0.63FS | WH | 0.50 | AMP | 967067-2 | X150A | 2 |
| 2 | AMP | 5-965906-1 | 0.63x0.63FS | BN | 0.50 | AMP | 967067-2 | X150A | 22 |
| 3 | AMP | 5-965906-1 | 0.63x0.63FS | GY | 0.50 | AMP | 967067-2 | X150A | 8 |
| 4 | AMP | 5-965906-1 | 0.63x0.63FS | BU | 0.50 | AMP | 967067-2 | X150A | 23 |
