X177 - x-lhd-sop9

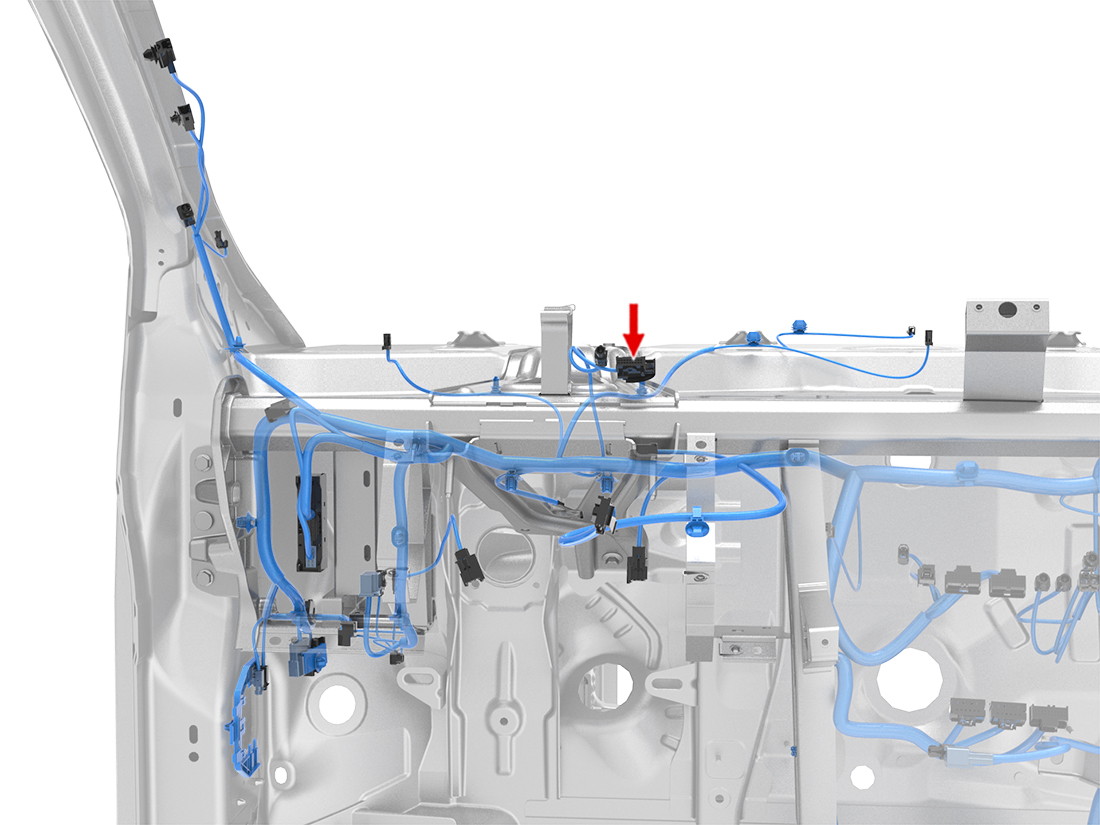

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | AMP | 5-928999-1 | 0.63x0.63F | GN/WH | 0.35 | X730 | 7 | ||
| 7 | AMP | 5-928999-1 | 0.63x0.63F | GN | 0.35 | X730 | 18 | ||
| 8 | AMP | 5-928999-1 | 0.63x0.63F | BK | 0.35 | GND_IP_L | 1 | ||
| 9 | |||||||||
| 10 | |||||||||
| 11 | |||||||||
| 12 | |||||||||
| 13 | AMP | 5-928999-1 | 0.63x0.63F | VT/WH | 0.35 | X171 | 4 | ||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | AMP | 5-928999-1 | 0.63x0.63F | RD | 0.35 | X026 | 7 | ||
| 18 | |||||||||
