X198 - x-lhd-sop9

Tesla Part Number
1015045-00-A
Connector
AMP 171809-2
Color
BK

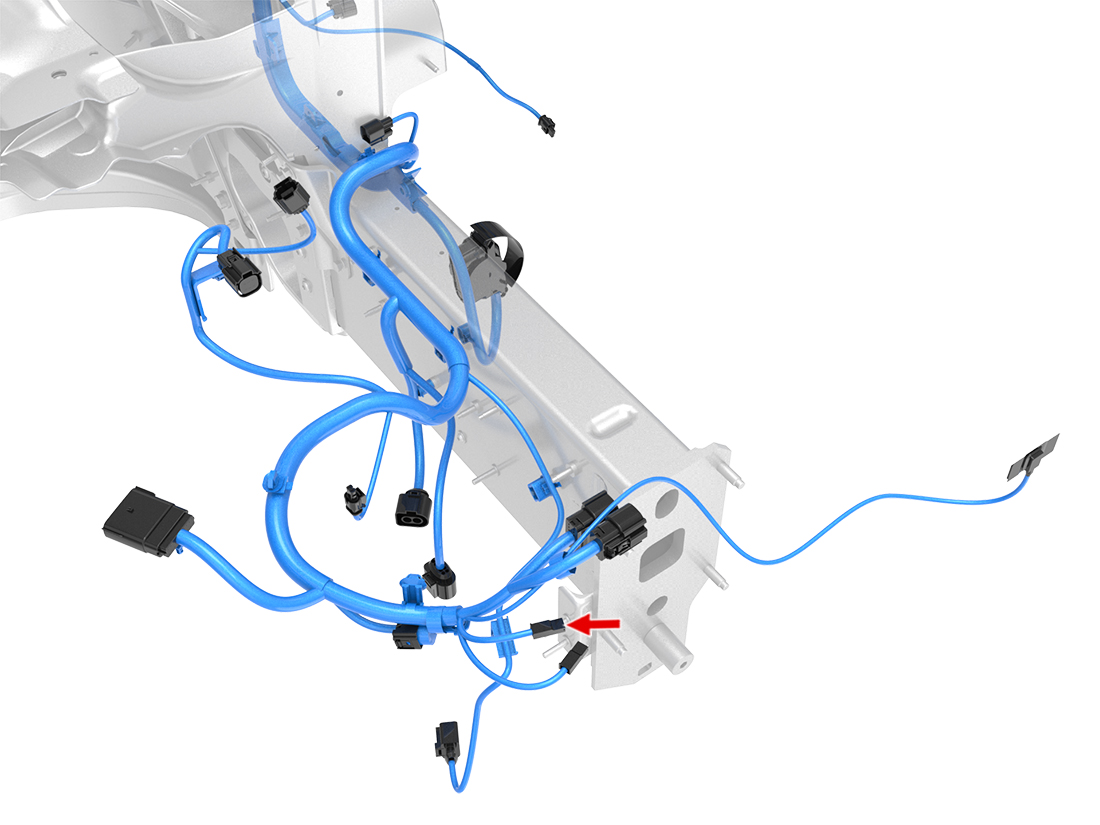

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP170233-26.3x0.8FRD/VT0.75X0035
