X2002A - x-lhd-sop9

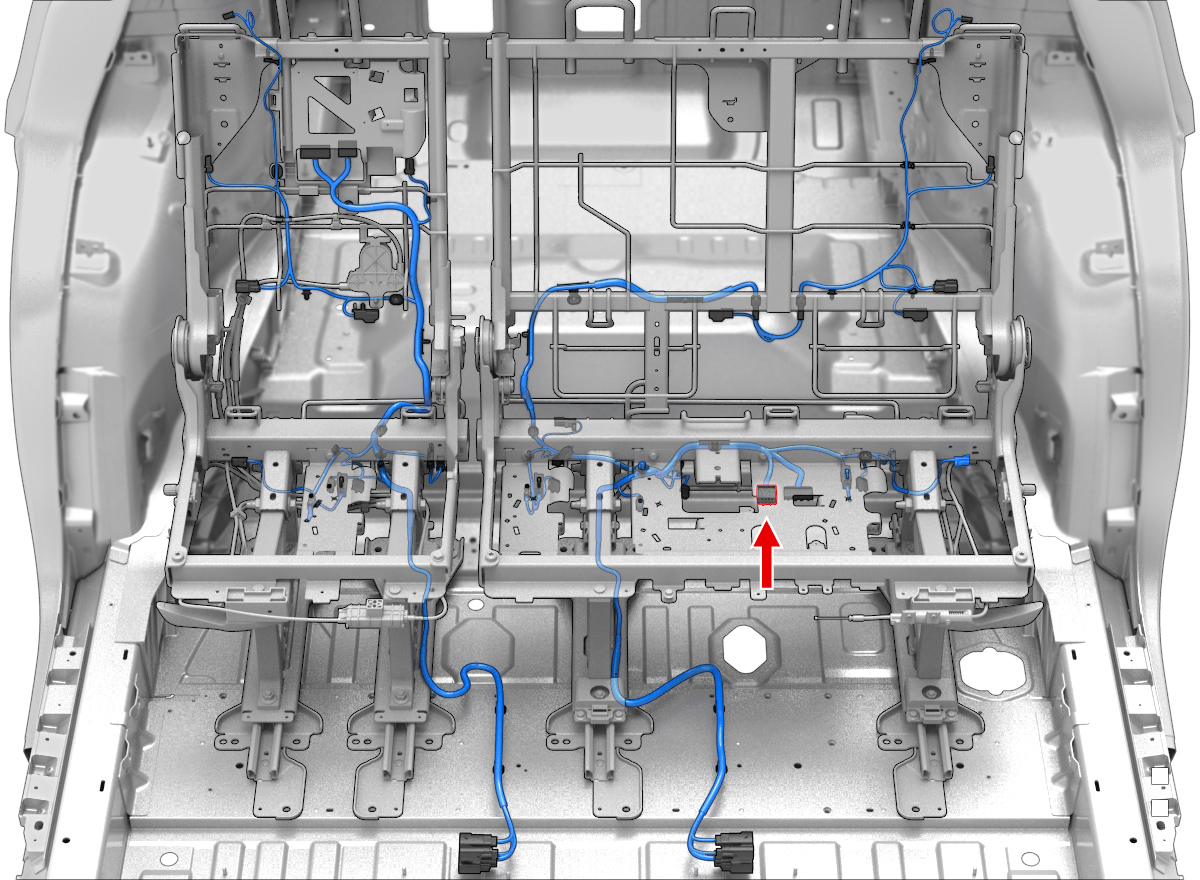

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.50 | X2000A | 9 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | BN | 0.50 | ||||
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | VT | 0.50 | ||||
| 7 | BK | 2.00 | |||||||
| 8 | AMP | 1326030-2 | 2.8x0.8F | GN | 0.75 | ||||
| 9 | AMP | 1326030-2 | 2.8x0.8F | GN | 0.75 | ||||
| 10 | BU | 2.00 | X2000A | 1 | |||||
