X201 - x-lhd-sop9

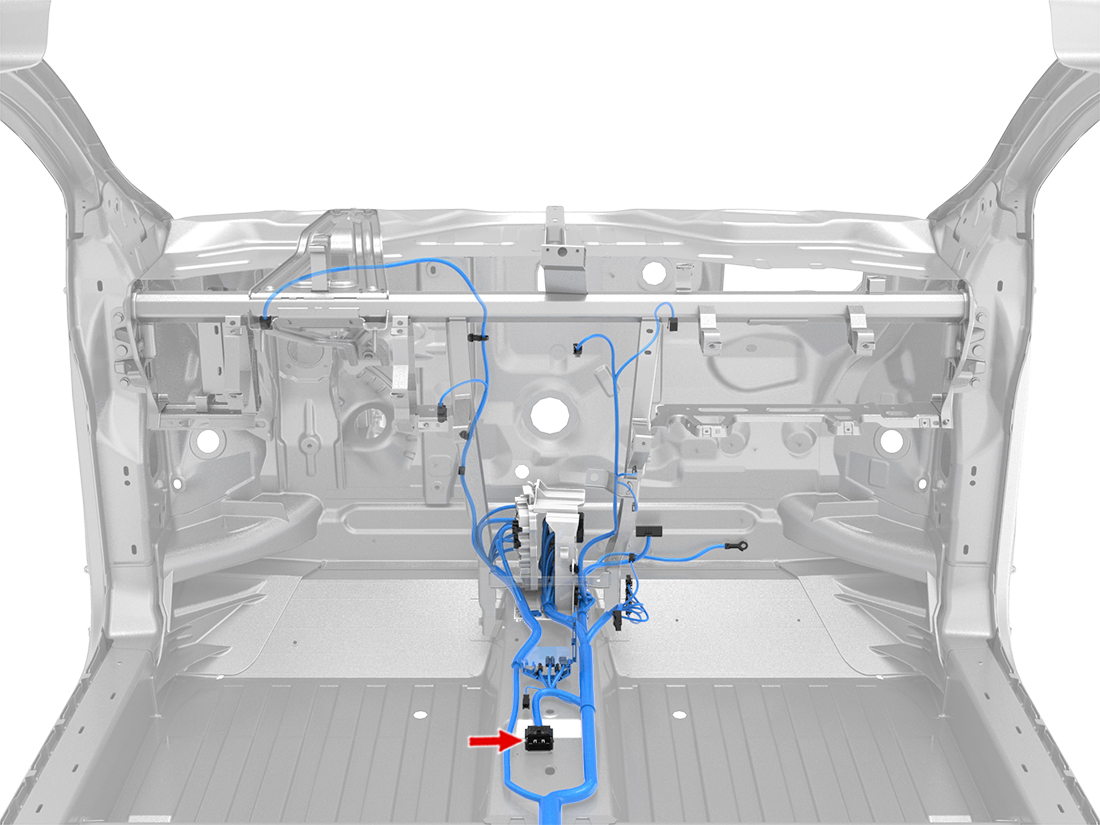

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X236 | 1 |
| 2 | AMP | 2035334-6 | 0.64x0.8F | RD | 0.35 | TESLA | MAT-110-206 | X236 | 2 |
| 3 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X235 | 1 |
| 4 | AMP | 2035334-6 | 0.64x0.8F | BU | 0.35 | TESLA | MAT-110-206 | X235 | 2 |
| 5 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X222 | 1 |
| 6 | AMP | 2035334-6 | 0.64x0.8F | VT | 0.35 | TESLA | MAT-110-206 | X222 | 2 |
| 7 | AMP | 2035334-6 | 0.64x0.8F | BN | 0.35 | TESLA | MAT-110-206 | X221 | 2 |
| 8 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X221 | 1 |
| 9 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X970M | 8 |
| 10 | AMP | 2035334-6 | 0.64x0.8F | RD | 0.35 | TESLA | MAT-110-206 | X970M | 9 |
| 11 | AMP | 2035334-6 | 0.64x0.8F | GN | 0.35 | TESLA | MAT-110-206 | X971M | 9 |
| 12 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X971M | 8 |
| 13 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X238 | 1 |
| 14 | AMP | 2035334-6 | 0.64x0.8F | BU | 0.35 | TESLA | MAT-110-206 | X238 | 2 |
| 15 | AMP | 2035334-6 | 0.64x0.8F | BK | 0.35 | TESLA | MAT-110-206 | X216 | 2 |
| 16 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X216 | 1 |
| 17 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X215 | 1 |
| 18 | AMP | 2035334-6 | 0.64x0.8F | BU | 0.35 | TESLA | MAT-110-206 | X215 | 2 |
| 19 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X926M | 5 |
| 20 | AMP | 2035334-6 | 0.64x0.8F | VT | 0.35 | TESLA | MAT-110-206 | X926M | 14 |
| 21 | AMP | 2035334-6 | 0.64x0.8F | WH | 0.35 | TESLA | MAT-110-206 | X926M | 15 |
| 22 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X926M | 6 |
| 23 | |||||||||
| 24 | |||||||||
| 25 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X237 | 1 |
| 26 | AMP | 2035334-6 | 0.64x0.8F | WH | 0.35 | TESLA | MAT-110-206 | X237 | 2 |
| 27 | |||||||||
| 28 | |||||||||
| 29 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X213 | 1 |
| 30 | AMP | 2035334-6 | 0.64x0.8F | BU | 0.35 | TESLA | MAT-110-206 | X213 | 2 |
| 31 | AMP | 2035334-6 | 0.64x0.8F | RD | 0.35 | TESLA | MAT-110-206 | X208 | 2 |
| 32 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X208 | 1 |
| 33 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X209 | 1 |
| 34 | AMP | 2035334-6 | 0.64x0.8F | GY | 0.35 | TESLA | MAT-110-206 | X209 | 2 |
| 35 | |||||||||
| 36 | |||||||||
| 37 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X218 | 1 |
| 38 | AMP | 2035334-6 | 0.64x0.8F | GY | 0.35 | TESLA | MAT-110-206 | X218 | 2 |
| 39 | AMP | 2035334-6 | 0.64x0.8F | GN | 0.35 | TESLA | MAT-110-206 | X217 | 2 |
| 40 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X217 | 1 |
| 41 | AMP | 2035334-6 | 0.64x0.8F | BK | 0.35 | TESLA | MAT-110-206 | GND_JC_C | 15 |
| 42 | |||||||||
| 43 | AMP | 2035334-6 | 0.64x0.8F | BU | 0.35 | TESLA | MAT-110-206 | X207 | 2 |
| 44 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X207 | 1 |
| 45 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X206 | 1 |
| 46 | AMP | 2035334-6 | 0.64x0.8F | GN | 0.35 | TESLA | MAT-110-206 | X206 | 2 |
| 47 | AMP | 2035334-6 | 0.64x0.8F | GN | 0.35 | TESLA | MAT-110-206 | X703 | 15 |
| 48 | AMP | 2035334-6 | 0.64x0.8F | GN/WH | 0.35 | TESLA | MAT-110-206 | X703 | 4 |
| 49 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X220 | 1 |
| 50 | AMP | 2035334-6 | 0.64x0.8F | GY | 0.35 | TESLA | MAT-110-206 | X220 | 2 |
| 51 | AMP | 2035334-6 | 0.64x0.8F | WH | 0.35 | TESLA | MAT-110-206 | X219 | 2 |
| 52 | AMP | 2035334-6 | 0.64x0.8F | OG | 0.35 | TESLA | MAT-110-206 | X219 | 1 |
| 53 | AMP | 2035334-6 | 0.64x0.8F | BK/VT | 0.35 | TESLA | MAT-110-206 | X701 | 4 |
| 54 | AMP | 2035334-6 | 0.64x0.8F | VT | 0.35 | TESLA | MAT-110-206 | X940 | 3 |
| 55 | AMP | 2035334-6 | 0.64x0.8F | WH | 0.35 | TESLA | MAT-110-206 | X945 | 3 |
| 56 | |||||||||
| 57 | AMP | 2035334-6 | 0.64x0.8F | BK | 0.35 | TESLA | MAT-110-206 | GND_JC_C | 14 |
| 58 | |||||||||
| 59 | AMP | 2035334-6 | 0.64x0.8F | YE | 0.35 | TESLA | MAT-110-206 | X910M | 11 |
| 60 | AMP | 2035334-6 | 0.64x0.8F | YE/WH | 0.35 | TESLA | MAT-110-206 | X910M | 10 |
