X2018A - x-lhd-sop9

Tesla Part Number
1094779-00-A
Connector
SUMITOMO 6098-4069
Color
WH

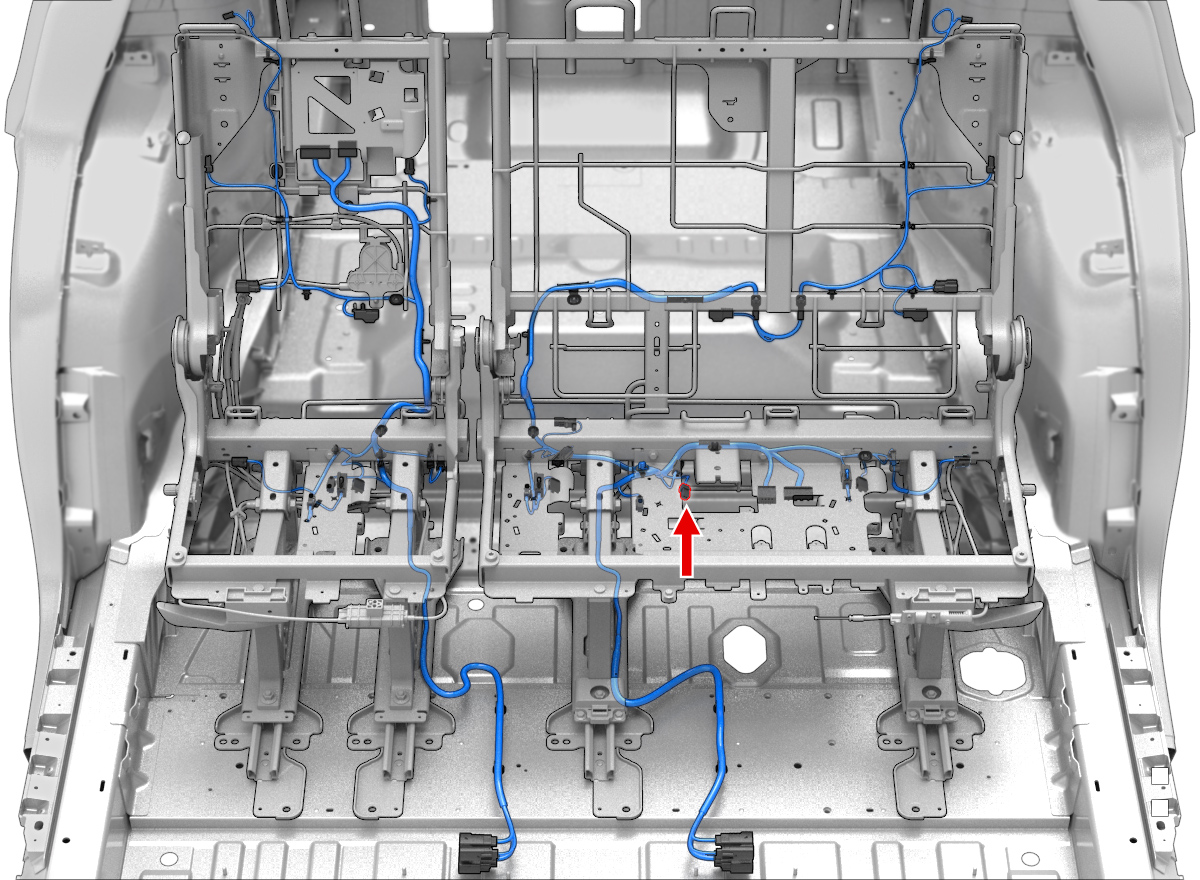

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1SUMITOMO8100-14702.3x0.64FGN0.35X2003A2
2SUMITOMO8100-14702.3x0.64FGY0.35X2003A1
