X2051A - x-lhd-sop9

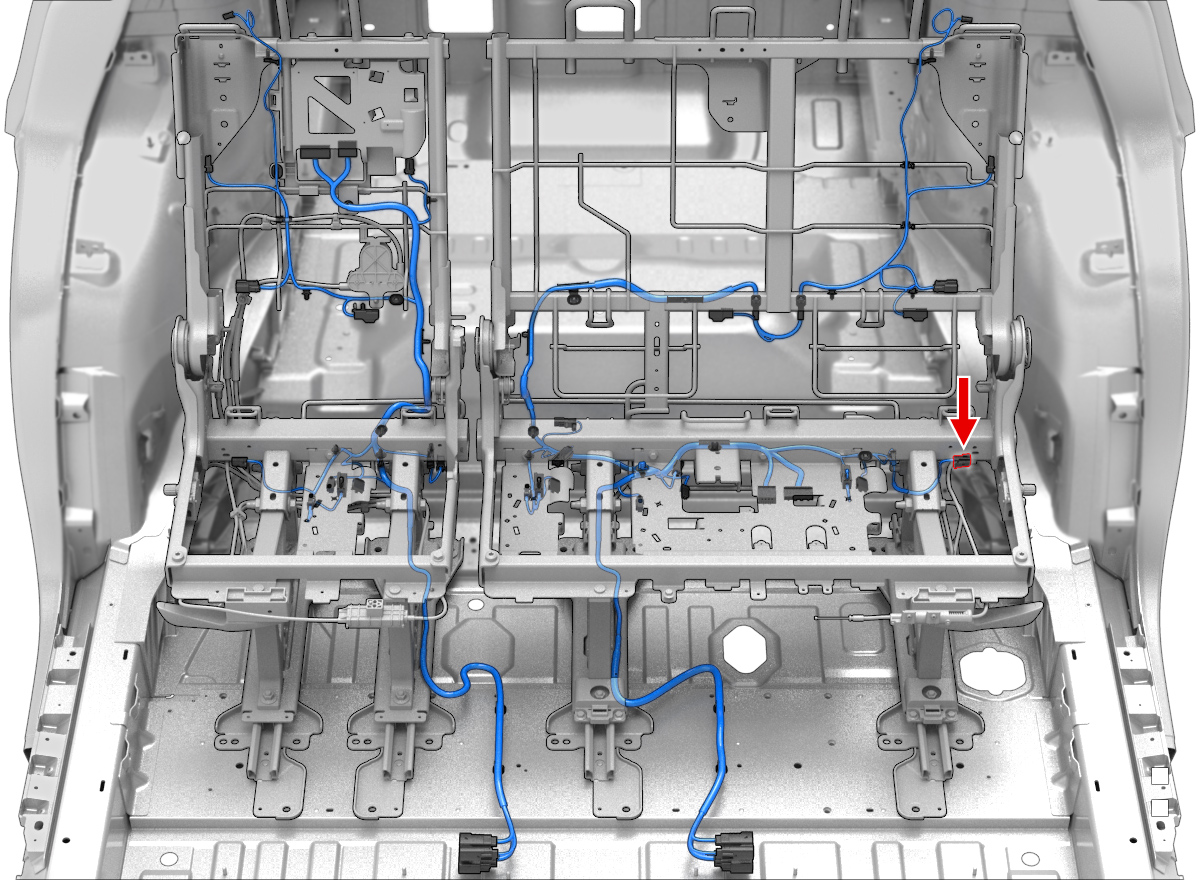

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35031567 | 1.5x0.8F | WH | 0.50 | X2003A | 12 | ||
| 2 | DELPHI | 35031567 | 1.5x0.8F | BU | 0.50 | X2011A | 1 |
