X235 - x-lhd-sop9

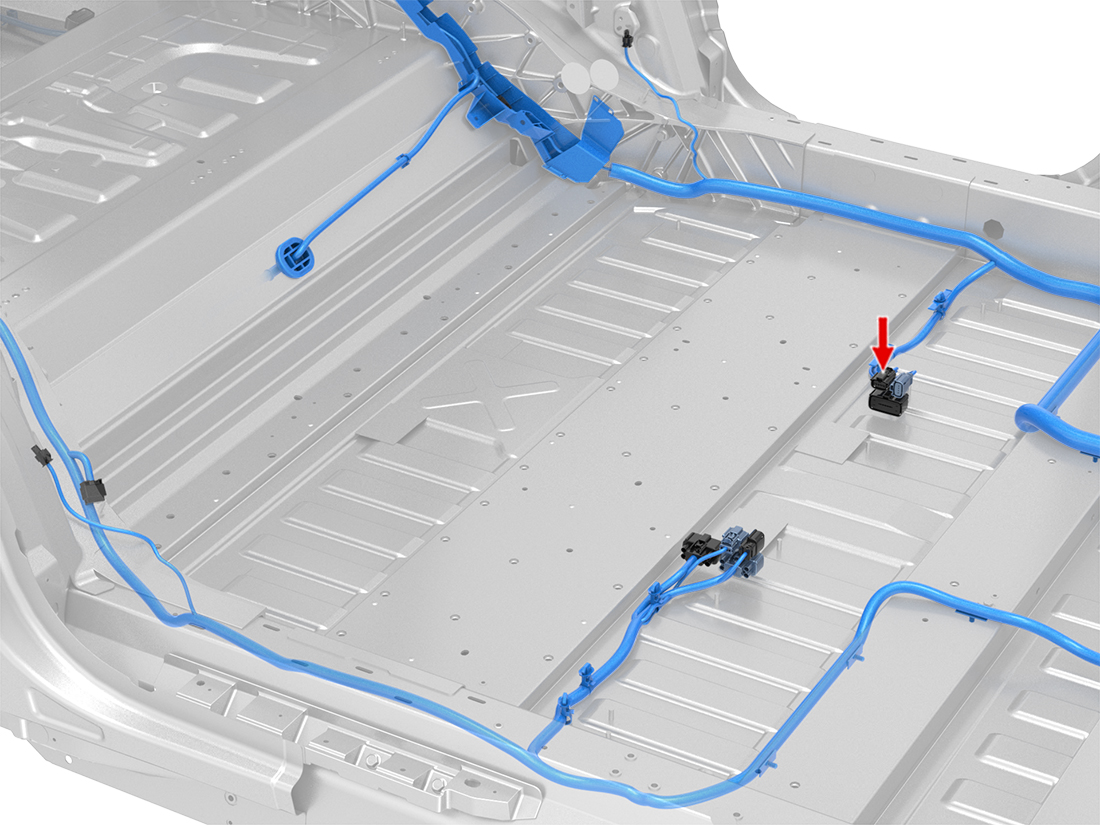

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | OG | 0.35 | TESLA | MAT-120-240 | X201 | 3 | |||
| 2 | BU | 0.35 | TESLA | MAT-120-240 | X201 | 4 | |||
| 3 | BK | 0.50 | TESLA | MAT-120-240 | GND_C2 | 1 | |||
| 4 | |||||||||
