X262 - x-lhd-sop9

Tesla Part Number

1459250-10-A

Connector

DELPHI 15513504

Color

BK

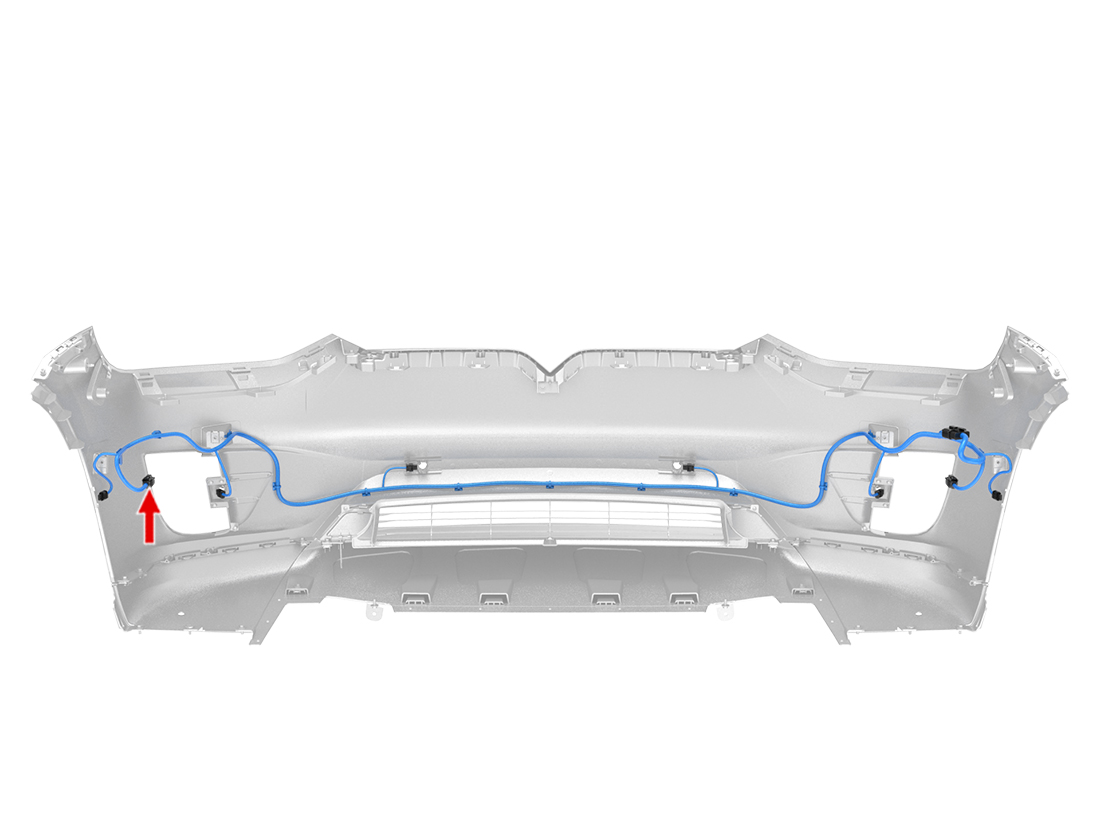

Connector Location:

Connector Pinout:

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35031567	1.5x0.8F	GN/WH	0.50	TESLA	MAT-120-240	X901F	13
2	DELPHI	35031567	1.5x0.8F	GN	0.50	TESLA	MAT-120-240	X901F	15
3	DELPHI	35031567	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
4	DELPHI	35031567	1.5x0.8F	BU	0.50	TESLA	MAT-120-240	X901F	20
5	DELPHI	35031567	1.5x0.8F	BN	0.50	TESLA	MAT-120-240	X901F	14
6	DELPHI	35031567	1.5x0.8F	BK	0.50	TESLA	MAT-120-240
