X269 - x-lhd-sop9

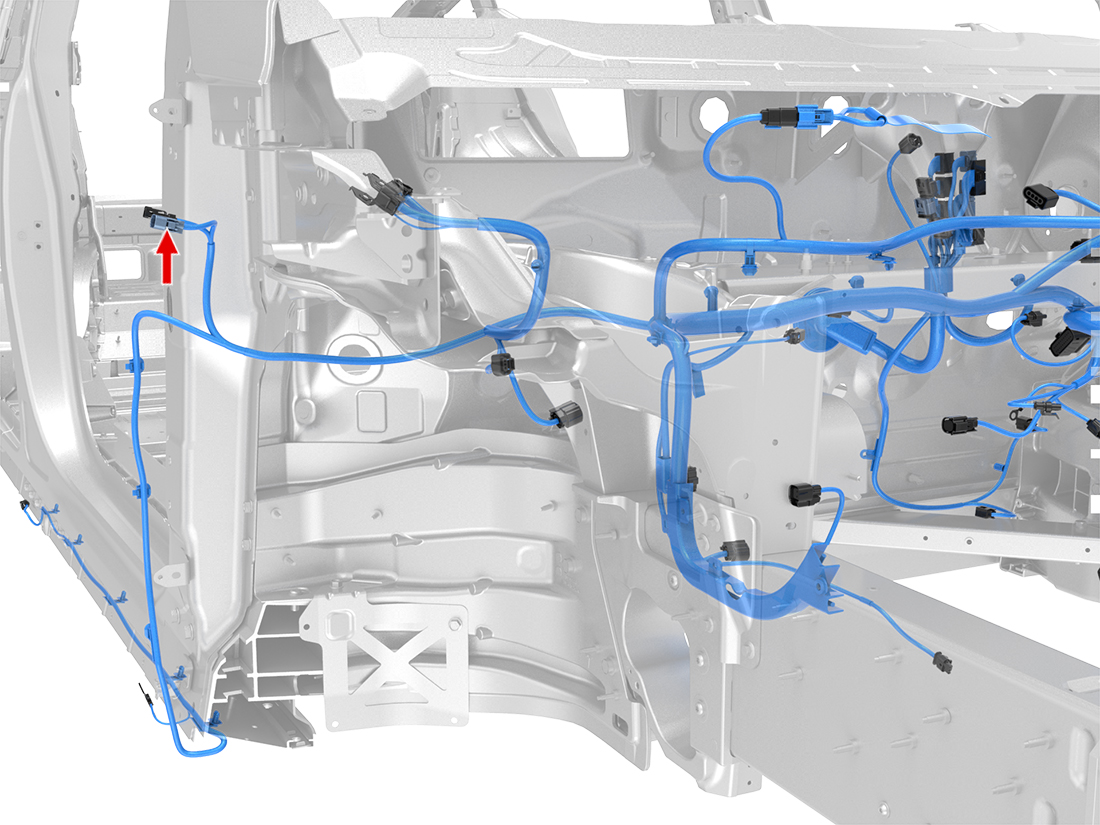

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | VT/WH | 0.50 | YAZAKI | 7158-3030-50 | X051 | 1 |
| 2 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | BK | 0.50 | YAZAKI | 7158-3030-50 | GND_FR_RH2 | 1 |
