X349 - x-lhd-sop9

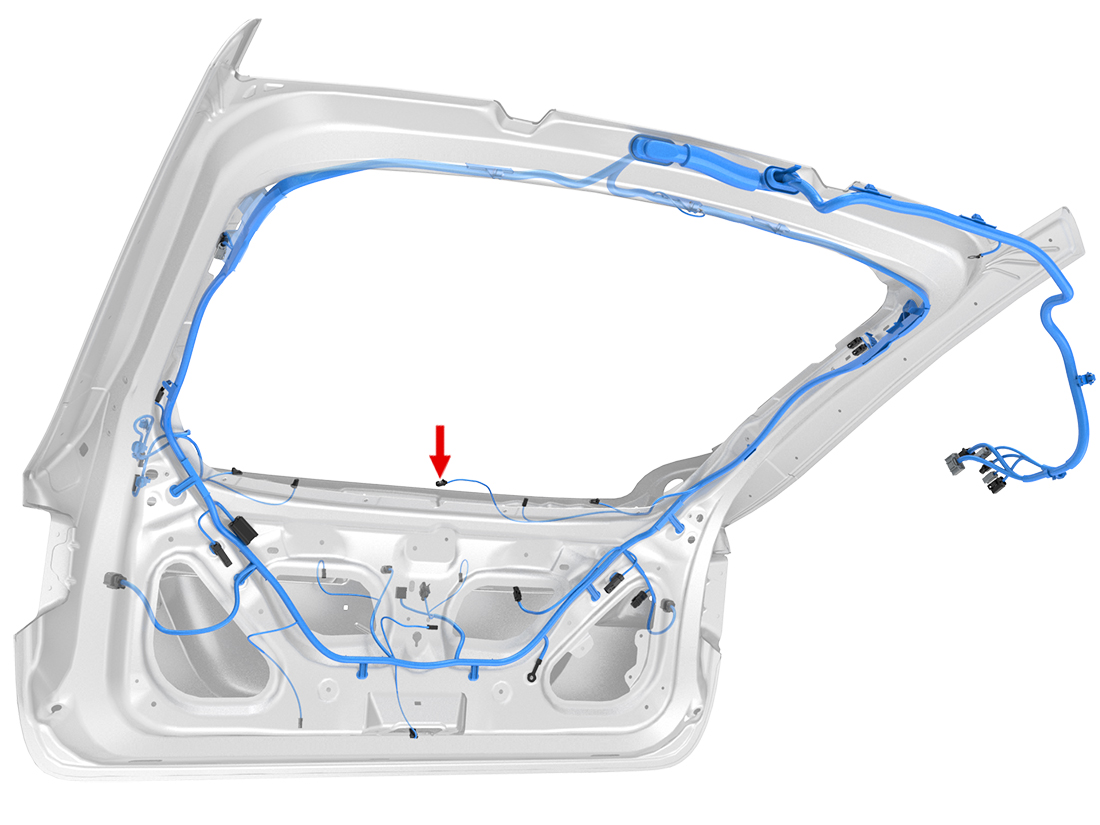

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3624 | 0.64x0.64F | WH | 0.35 | X955F | 9 | ||
| 2 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X955F | 20 |
