X485A - x-lhd-sop9

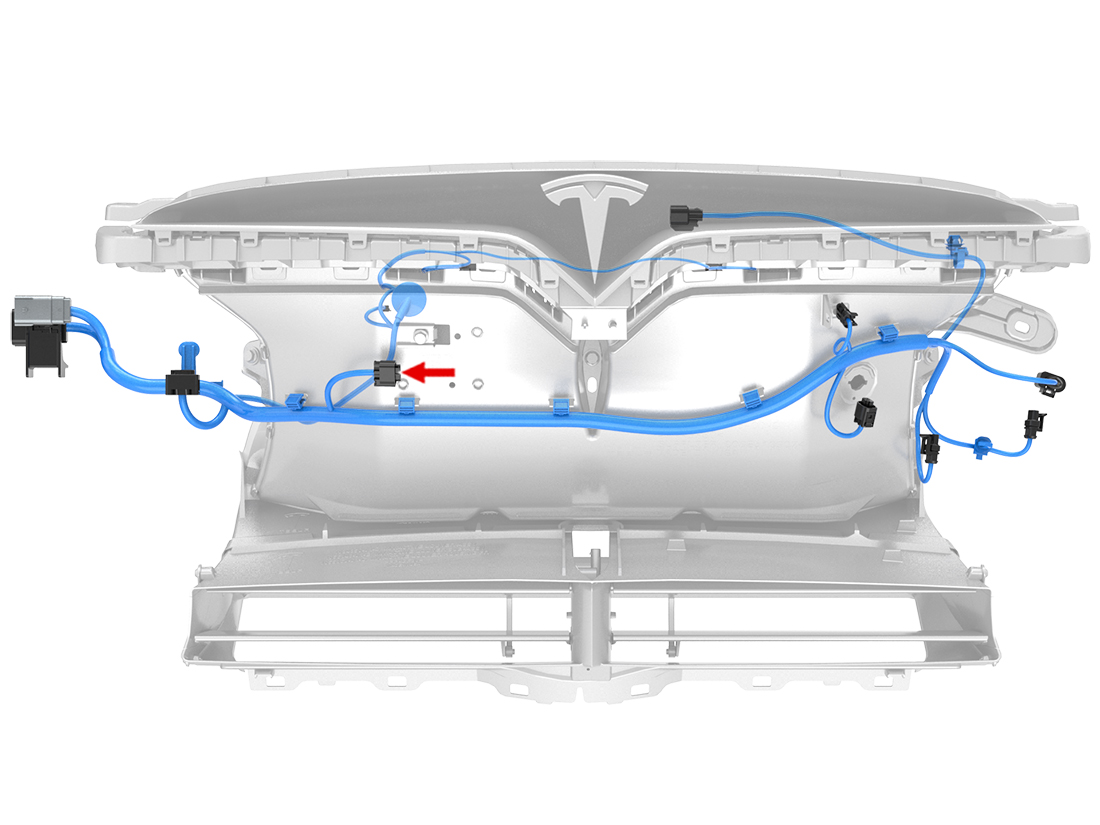

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-1 | 1.2x0.6FS | VT/WH | 0.50 | AMP | 967067-2 | X906M | 13 |
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 | ||
| 3 | AMP | 7-1452668-1 | 1.2x0.6FS | GN | 0.50 | AMP | 967067-2 | X906M | 12 |
| 4 | |||||||||
| 5 | |||||||||
