X523 - x-lhd-sop9

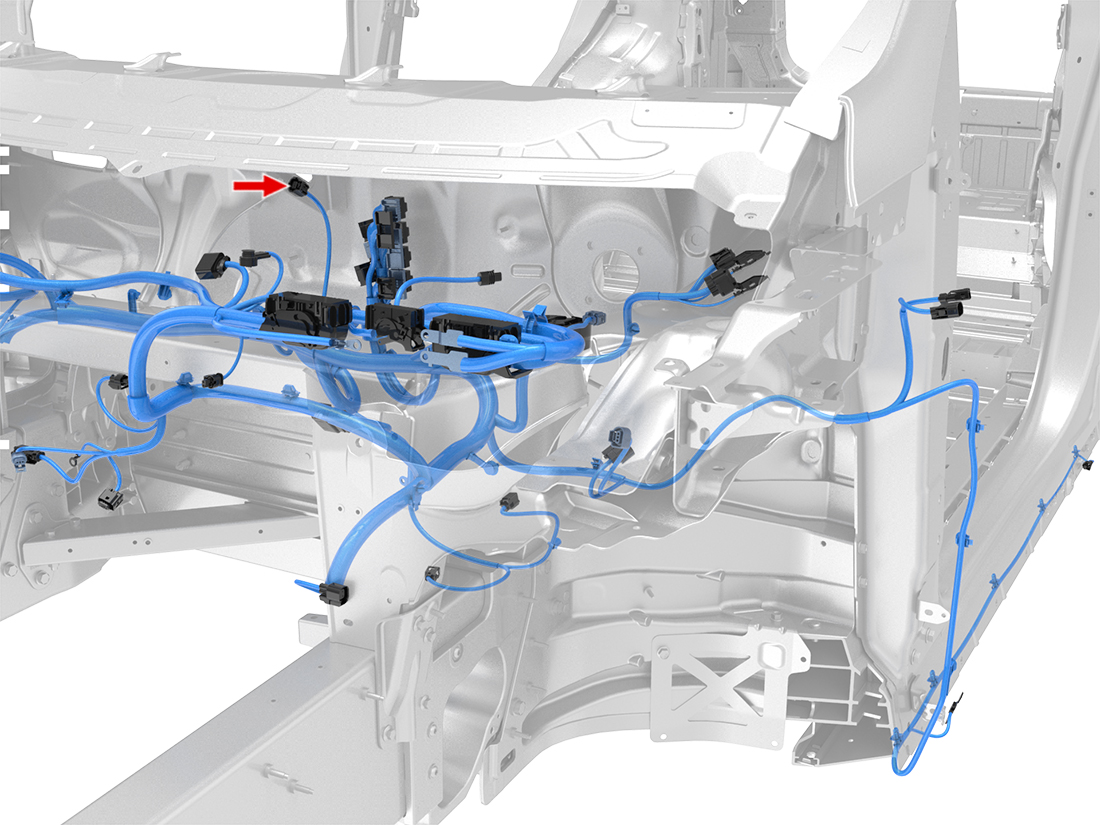

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 184095-2 | 1.8x0.64F | RD/WH | 0.50 | AMP | 184139-1 | X500 | 12 |
| 2 | AMP | 184095-2 | 1.8x0.64F | BK/WH | 0.50 | AMP | 184139-1 | X500 | 3 |
