X536A - x-lhd-sop9

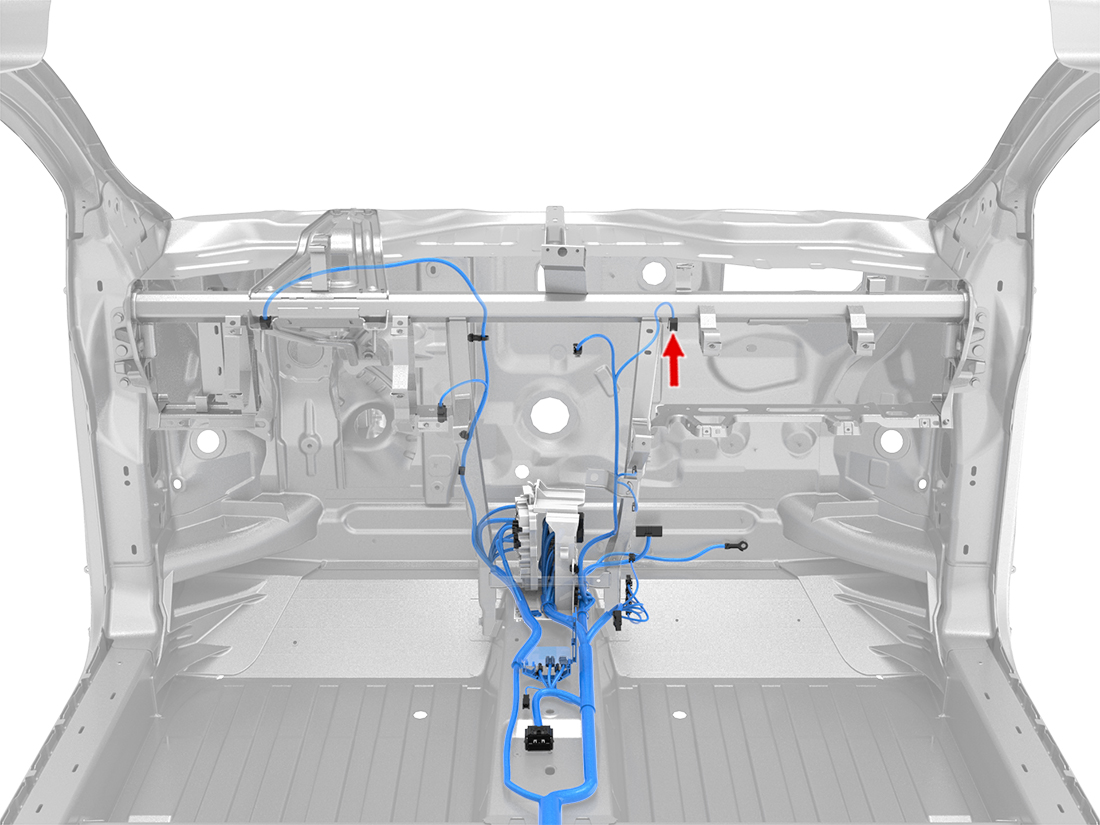

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 170032-5 | 6.3x0.8F | RD | 2.00 | X913M | 1 | ||
| 2 | AMP | 170032-5 | 6.3x0.8F | BK | 2.00 | GND_C | 1 |
