X540 - x-lhd-sop9

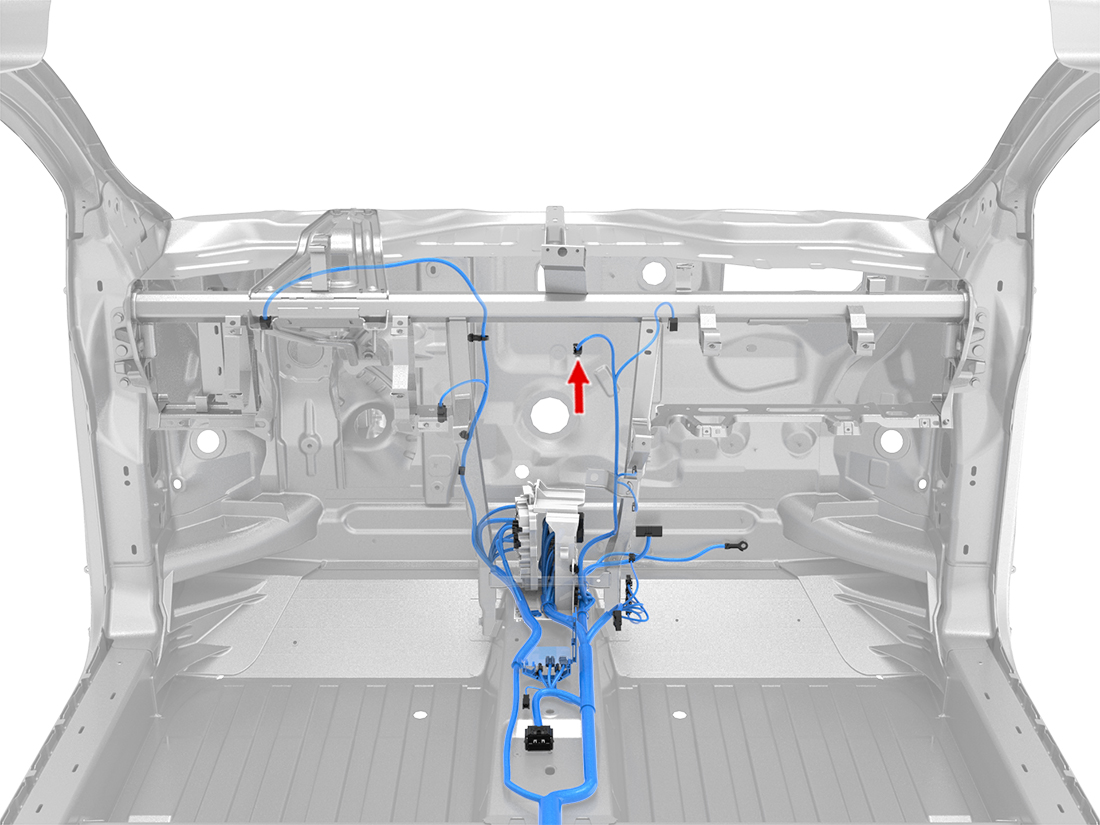

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | AMP | 1674311-1 | 0.64F | RD/VT | 0.35 | X028 | 4 | ||
| 9 | AMP | 1674311-1 | 0.64F | BK | 0.35 | GND_C2 | 1 | ||
| 10 | AMP | 1674311-1 | 0.64F | BK | 0.35 | GND_C2 | 1 | ||
| 11 | AMP | 1674311-1 | 0.64F | VT/WH | 0.35 | X703 | 7 | ||
| 12 | AMP | 1674311-1 | 0.64F | VT | 0.35 | X703 | 18 | ||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | AMP | 1674311-1 | 0.64F | VT | 0.35 | X925M | 16 | ||
