X550 - x-lhd-sop9

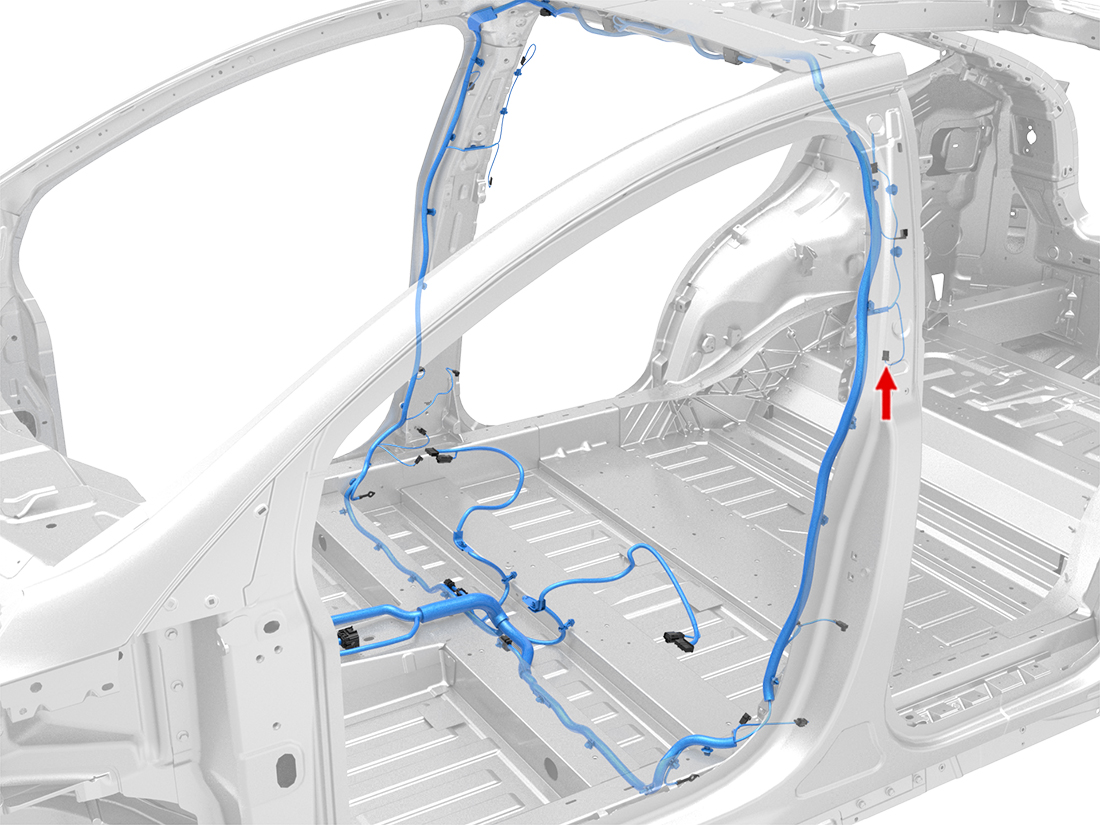

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1355717-1 | 0.63x0.63F | WH | 0.13 | X061 | 14 | ||
| 2 | AMP | 1355717-1 | 0.63x0.63F | GN | 0.13 | X061 | 15 | ||
| 3 | AMP | 1355717-1 | 0.63x0.63F | BU | 0.13 | X061 | 8 | ||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | BK | 0.35 | GND_LB | 1 |
