X586 - x-lhd-sop9

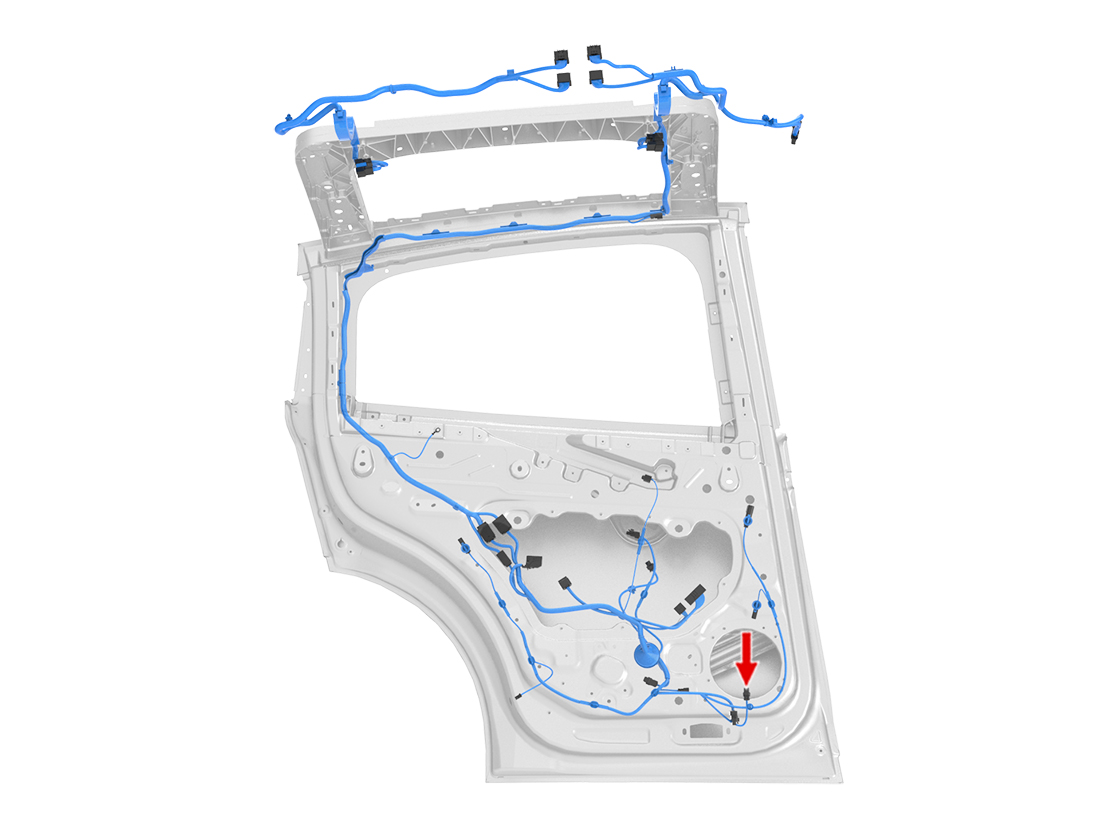

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 282110-1 | 1.5x0.8FS | RD | 1.00 | AMP | 281934-2 | GND_JC_LRD_F | 1 |
| 2 | AMP | 282110-1 | 1.5x0.8FS | GY | 1.00 | AMP | 281934-2 | GND_JC_LRD_F | 4 |
