X675 - x-lhd-sop9

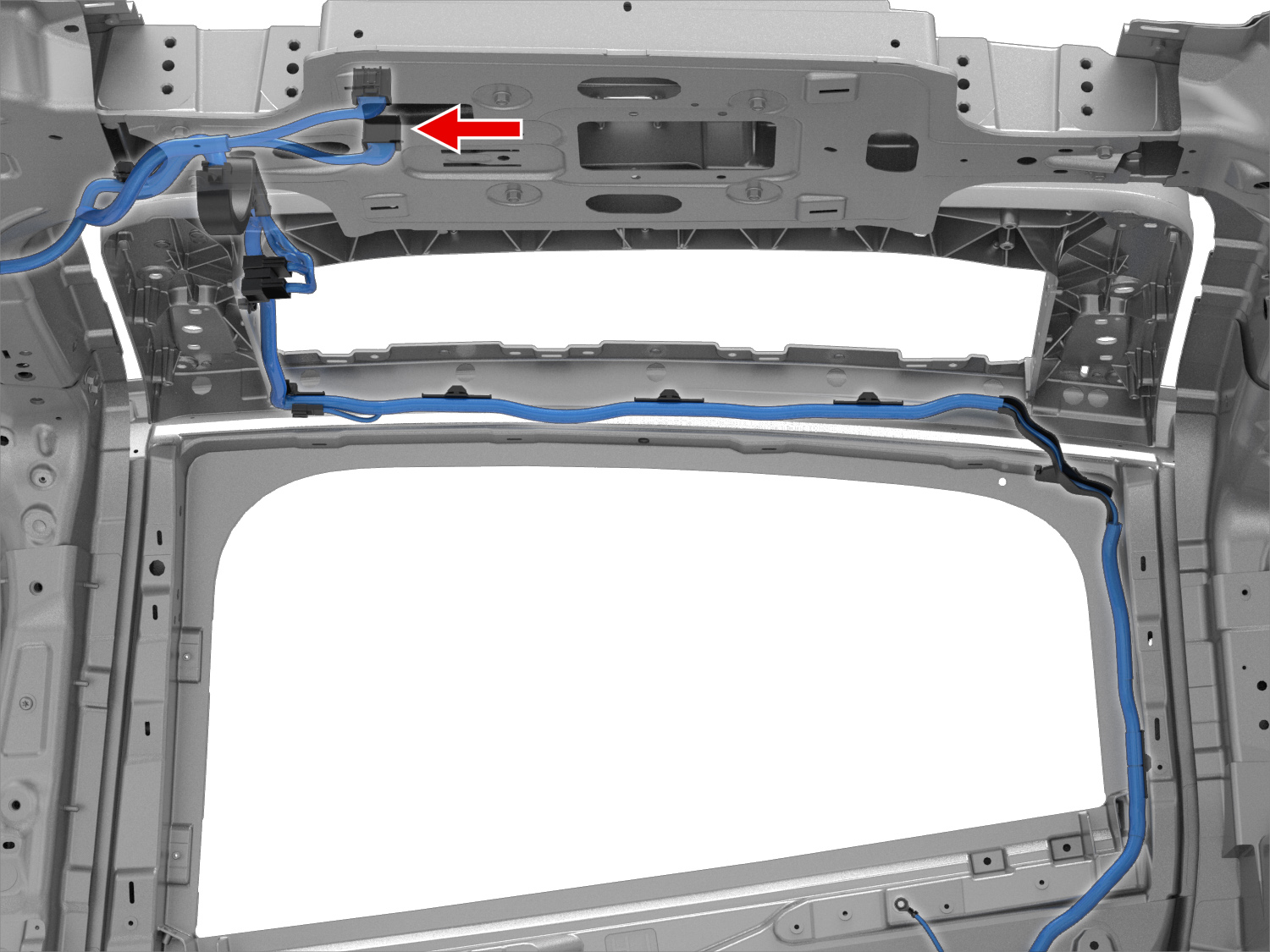

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | MOLEX | 34803-3211 | 0.64x0.64F | SI | 0.35 | X695 | 11 | ||
| 6 | MOLEX | 34803-3211 | 0.64x0.64F | BK | 0.35 | X695 | 5 | ||
| 7 | MOLEX | 34803-3211 | 0.64x0.64F | RD | 0.35 | X695 | 3 | ||
| 8 | MOLEX | 34803-3211 | 0.64x0.64F | BU | 0.35 | X695 | 4 | ||
| 9 | |||||||||
| 10 | MOLEX | 34803-3211 | 0.64x0.64F | GY | 0.35 | X695 | 2 | ||
| 11 | RD | 2.00 | X695 | 1 | |||||
| 12 | BU | 2.00 | X695 | 6 | |||||
| 13 | |||||||||
| 14 | AMP | 1326030-1 | 2.8x0.8F | SI | 0.35 | X695 | 8 | ||
