X728 - x-lhd-sop9

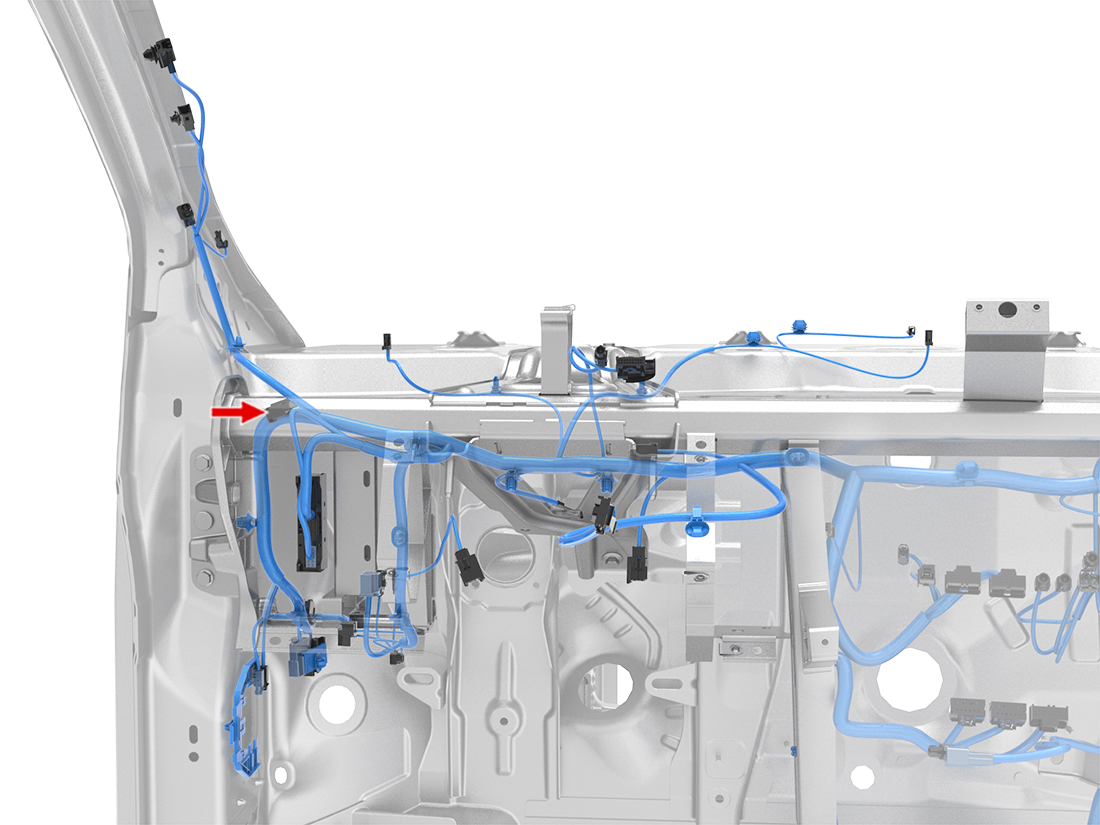

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN/WH | 0.35 | X171 | 9 | ||
| 2 | SUMITOMO | 8100-3624 | 0.64x0.64F | BN/WH | 0.35 | X920M | 6 | ||
| 3 | |||||||||
| 4 | SUMITOMO | 8240-0182 | 0.64x0.64F | WH | 0.13 | X734 | 1 | ||
| 5 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD | 0.35 | X179 | 1 | ||
| 6 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD | 0.35 | X026 | 13 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.50 | X178 | 16 | ||
| 8 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD/BU | 0.35 | X925F | 10 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BU | 0.35 | X289 | 1 | ||
| 10 | SUMITOMO | 8100-3624 | 0.64x0.64F | RD/BU | 0.35 | X026 | 6 | ||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BU | 0.35 | X290 | 1 | ||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X171 | 19 | ||
| 13 | SUMITOMO | 8100-3624 | 0.64x0.64F | BN | 0.35 | X920M | 15 | ||
| 14 | |||||||||
| 15 | SUMITOMO | 8240-0182 | 0.64x0.64F | BN | 0.13 | X734 | 12 | ||
| 16 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X925F | 16 | ||
| 17 | SUMITOMO | 8100-3624 | 0.64x0.64F | VT | 0.35 | X179 | 6 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.50 | X178 | 7 | ||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X171 | 13 | ||
| 20 | SUMITOMO | 8100-3624 | 0.64x0.64F | WH | 0.35 | X060 | 22 | ||
| 21 | |||||||||
| 22 | SUMITOMO | 8100-3624 | 0.64x0.64F | WH | 0.35 | X925F | 9 | ||
