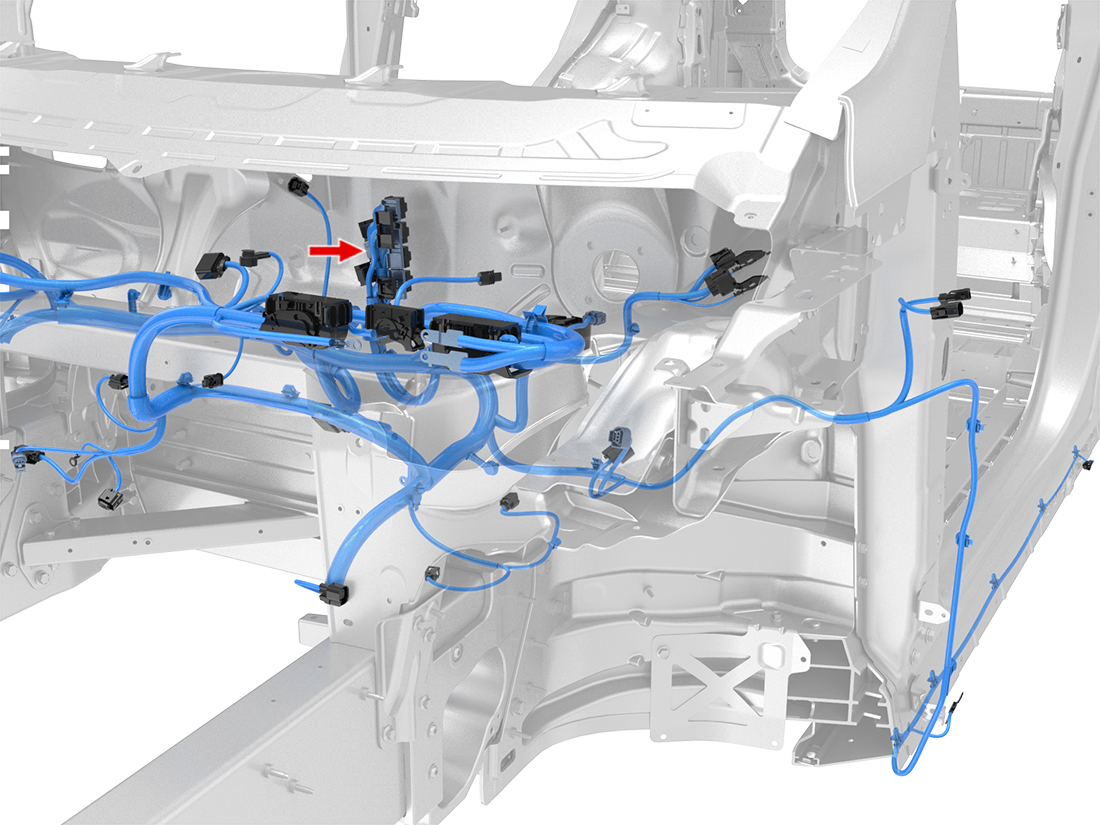

X750 - x-lhd-sop9

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

Connector Details:

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X911F	5
2	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.50	X150	25
3	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.50	X165	2
4	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X065	23
5	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.50	X151	26
6	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X914M	17
7	SUMITOMO	8240-0182	0.64x0.64F	WH	0.13	X914M	6
8	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.35	X995F	3
9	SUMITOMO	8100-3625	0.64x0.64F	RD/WH	0.50	X101	2
10	SUMITOMO	8100-3624	0.64x0.64F	WH	0.35	X501	11
11	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50	X913F	10
12	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X911F	15
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X150	16
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X165	3
15	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X065	24
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X151	14
17	SUMITOMO	8240-0182	0.64x0.64F	GN	0.13	X914M	7
18	SUMITOMO	8240-0182	0.64x0.64F	RD	0.13	X914M	16
19	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X995F	4
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X101	3
21	SUMITOMO	8100-3624	0.64x0.64F	RD	0.35	X501	12
22	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50	X913F	9
