X828M - x-lhd-sop9

Tesla Part Number
1045760-05-A
Connector
ROSENBERGER 59Z176-C01-F
Color
BN

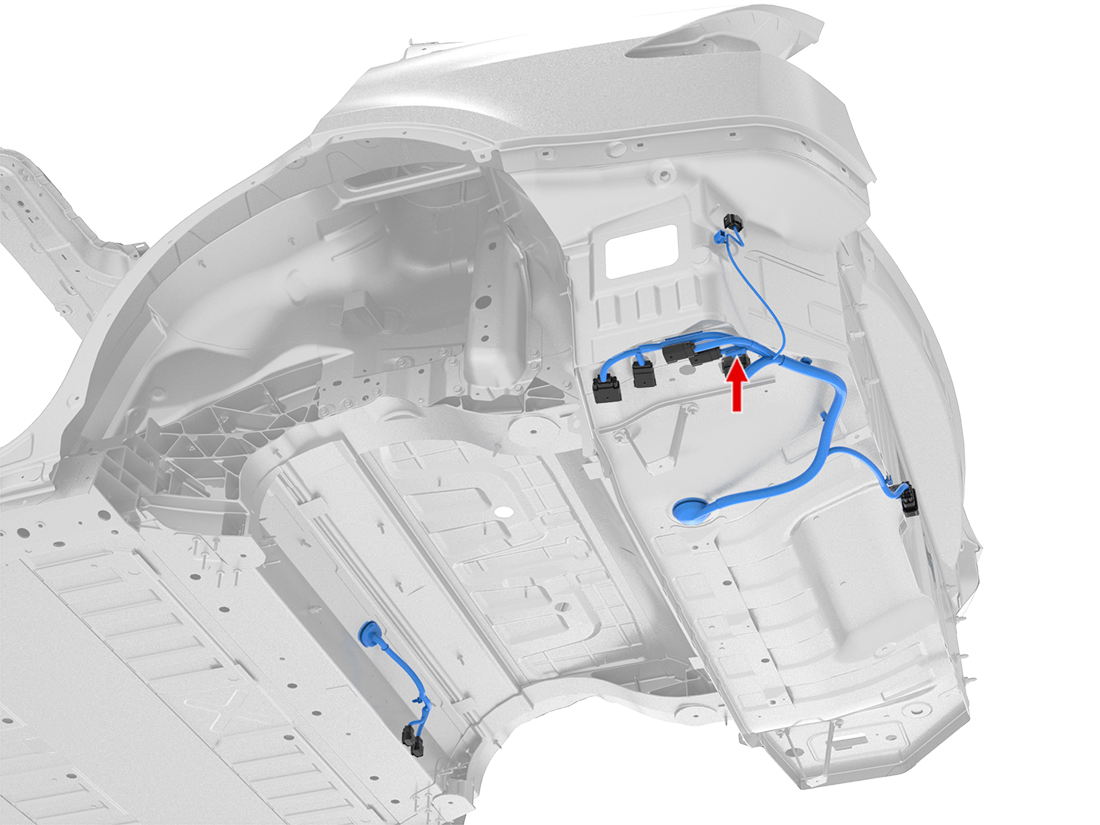

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1ROSENBERGER59S16A-1M4T4COAXMBKD302ROSENBERGER59K14B-1M4-50X809F1
