X841M-A - x-lhd-sop9

Tesla Part Number
1049861-09-A
Connector
ROSENBERGER 59Z120-C00-K
Color
CR

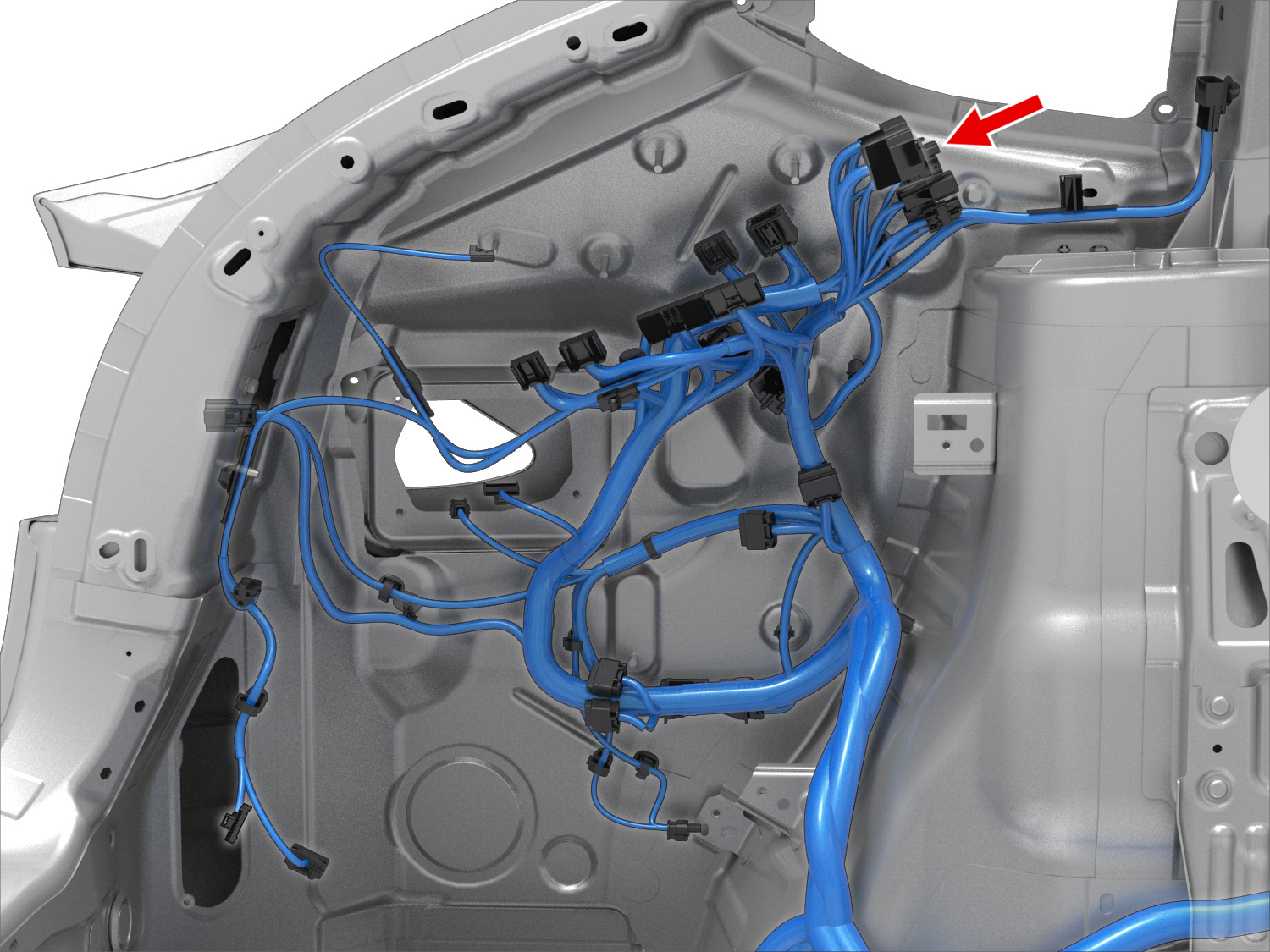

Connector Location:

Connector Pinout:

Connector Details:

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1
2ROSENBERGER59S16A-1M4T4COAXMBKD302X825M1
