X900M - x-lhd-sop9

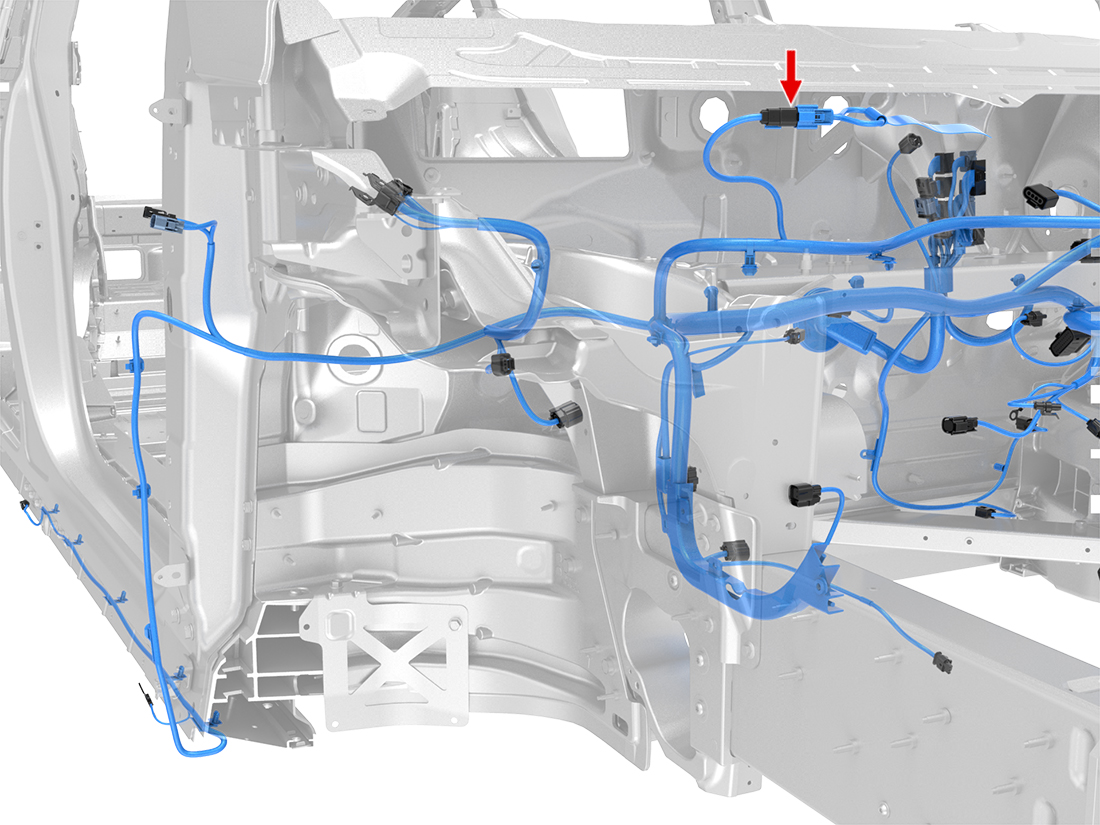

Connector Location:
Connector Pinout:
Connector Details:
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0004 | 1.5x0.8M | RD/WH | 0.50 | TESLA | MAT-120-240 | X002 | 18 |
| 2 | GN | 0.75 | TESLA | MAT-120-240 | X003 | 16 | |||
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | RD/WH | 0.50 | TESLA | MAT-120-240 | X031 | 11 |
| 4 | GN | 0.75 | TESLA | MAT-120-240 | X913F | 17 | |||
| 5 | |||||||||
| 6 | |||||||||
